To fit

WARNING: This page is about a different car, the 2001 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

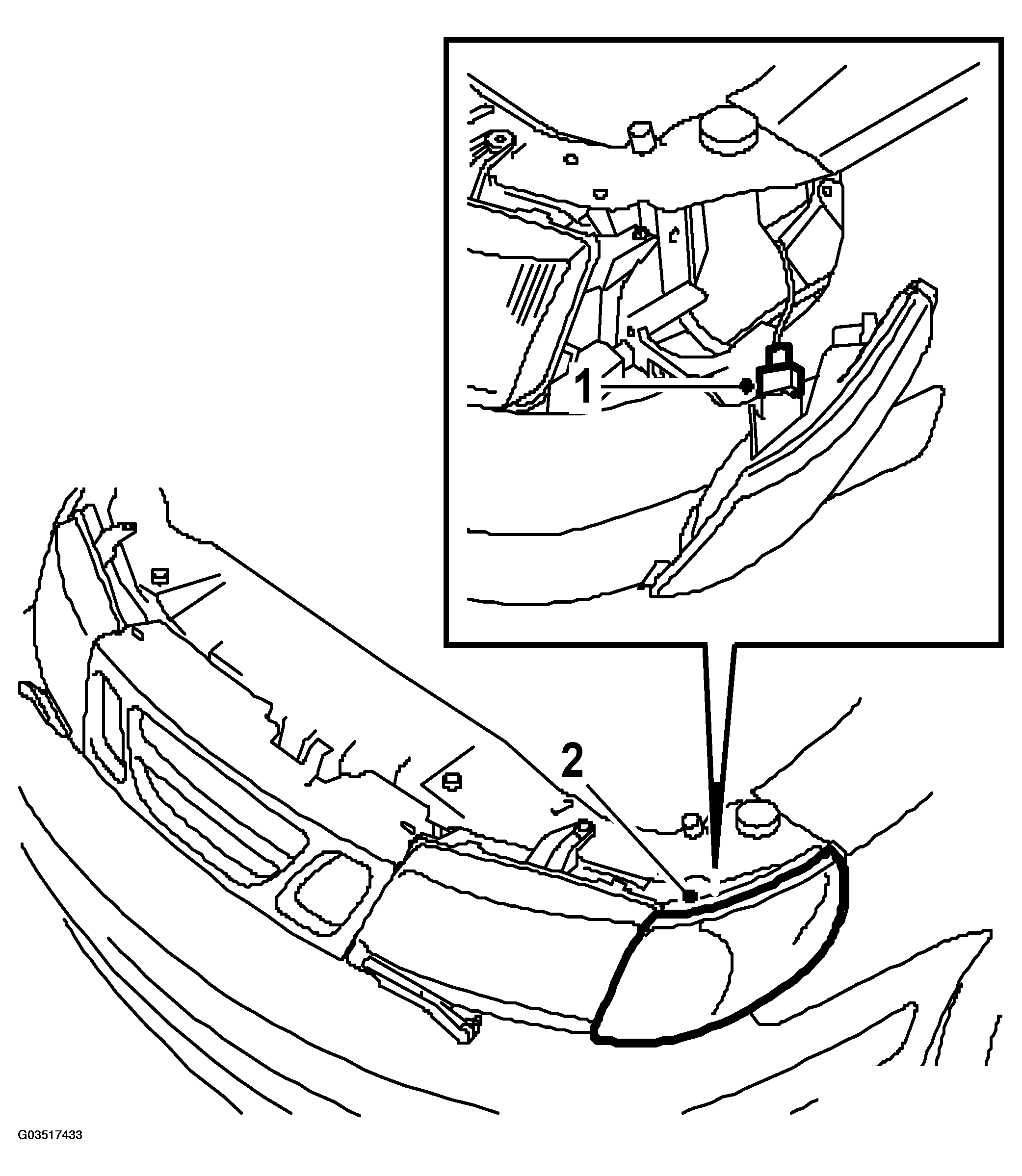

Fig 1: Illustration For Step 1-2
G03517433Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Insert the lamp and lampholder into the light cluster and turn it clockwise to fasten it.
  2. Position the light cluster correctly and tighten its retaining screw. Make sure the plate nut is in the correct position.
