To remove

WARNING: This page is about a different car, the 2001 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out the steering wheel to its outermost position.
  2. Remove the steering column bearing bracket cowls (3 screws).
  3. Pull out the stalk switch (2 clips).

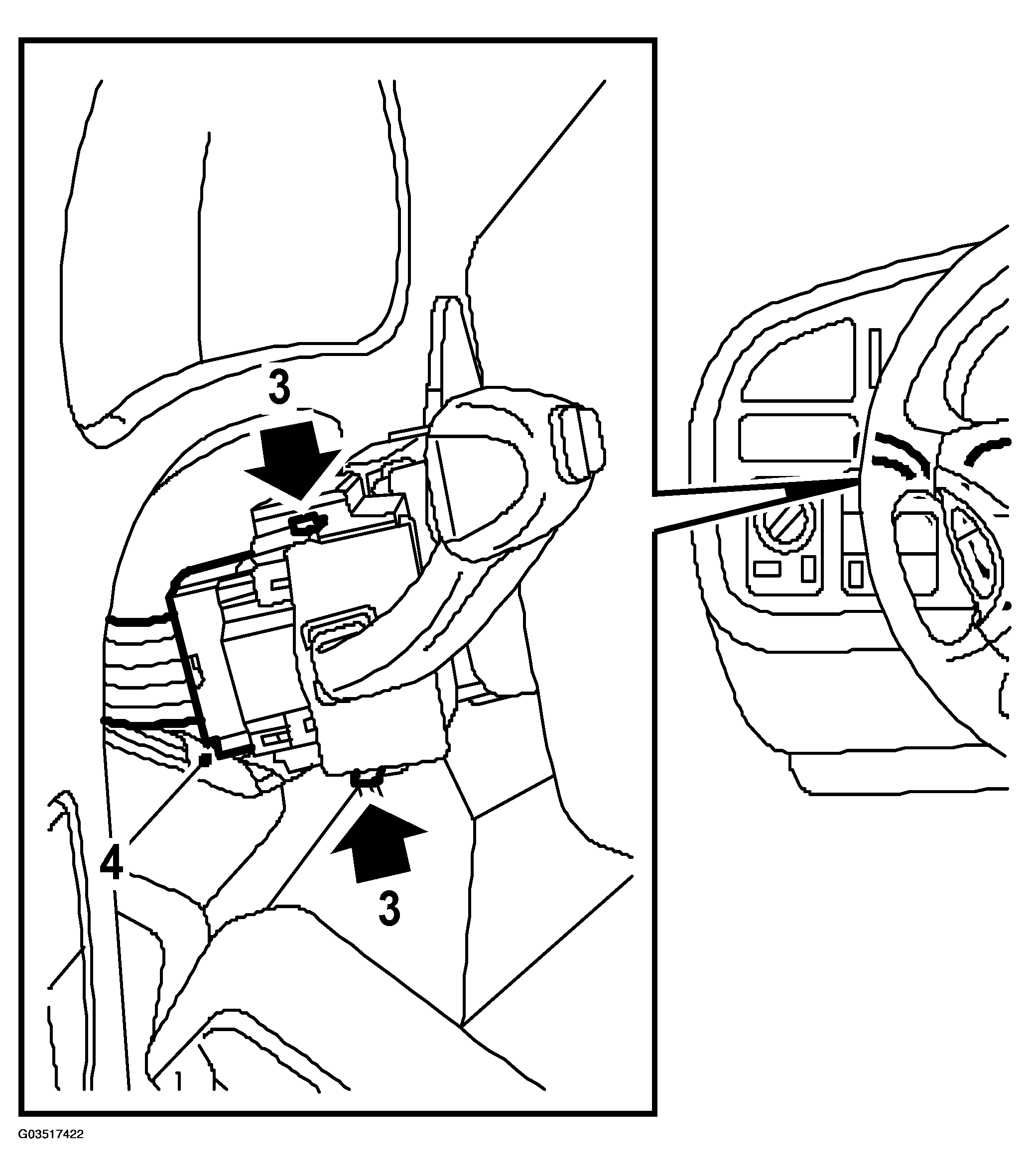

    Fig 1: Illustration For Step 3
    G03517422Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the 10-pin connector.
