To Fit

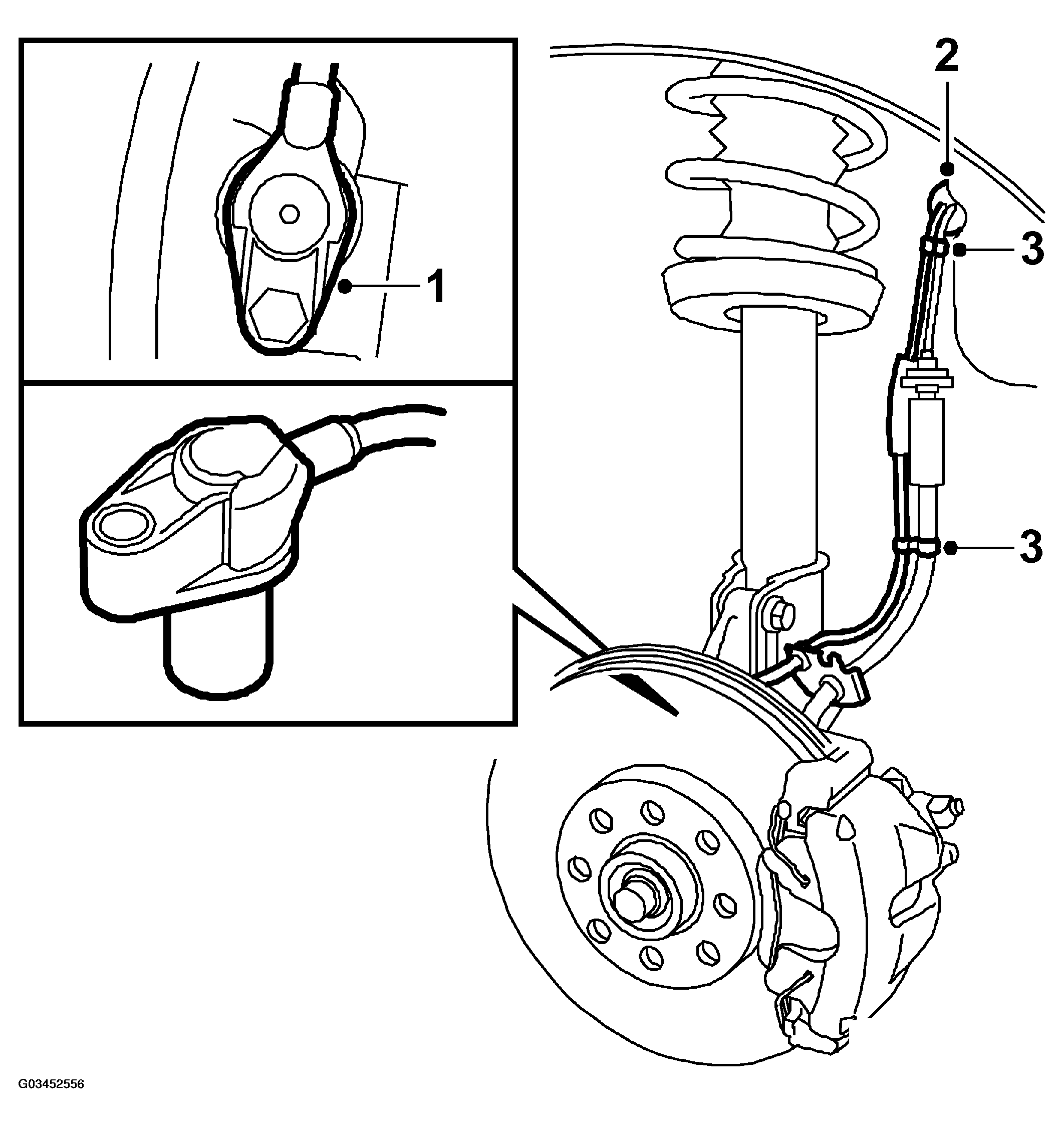

Fig 1: Fitting Wheel Sensor (Front Right)
G03452556
  1. Fit the wheel sensor in its holder and tighten the retaining bolt.
  2. Insert the lead.
  3. Push the lead into the clips and fit the grommet.
  4. Fit the wheel and lower the car.

    Tightening torques

    1. Aluminum wheel 110 Nm (81 lbf ft)
    2. Steel wheel 50 Nm +2x90°, max. 110 Nm (37 lbf ft +2x90°, max. 81 lbf ft)
  5. Plug in the connector.

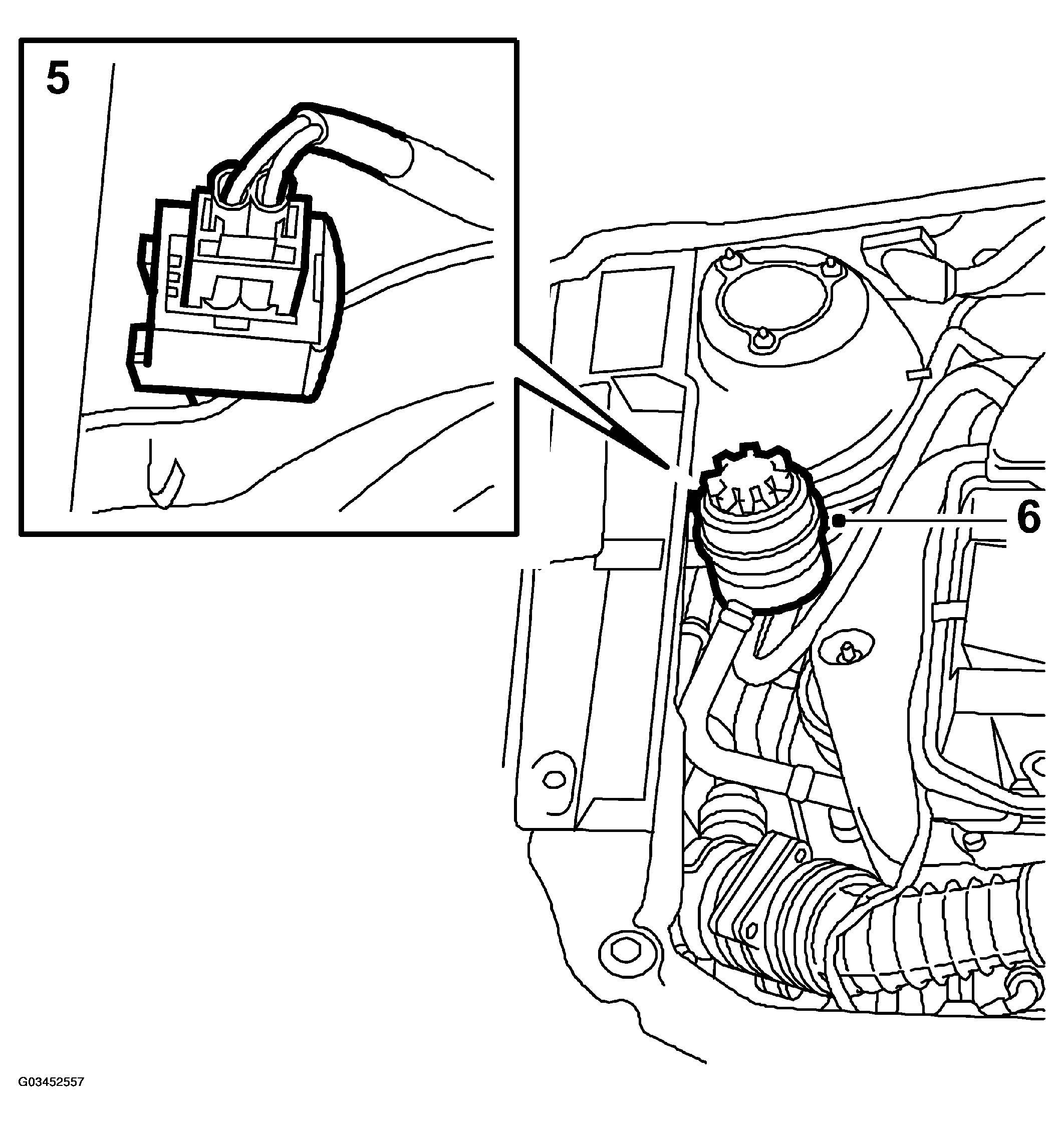

    Fig 2: Plugging Connector (Front Right)
    G03452557
  6. Plug the connector into the holder.
