Servicing - M/T: Identification

For transaxle identification, refer to illustration. See Fig 1 .

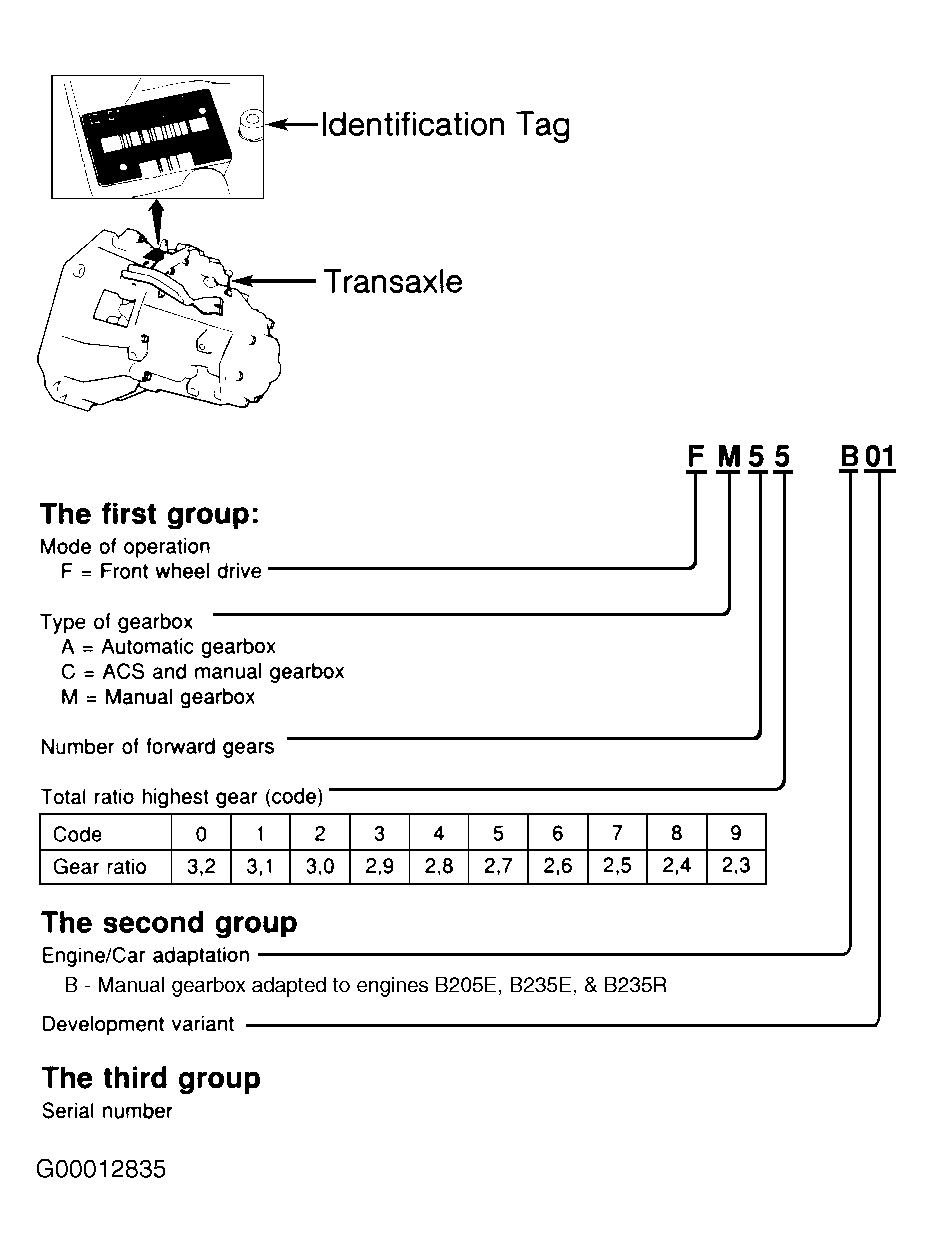

Fig 1: Identifying Transaxle

G00012835

Courtesy of SAAB-SCANIA OF AMERICA, INC.
