Testing For Short Circuits To Ground

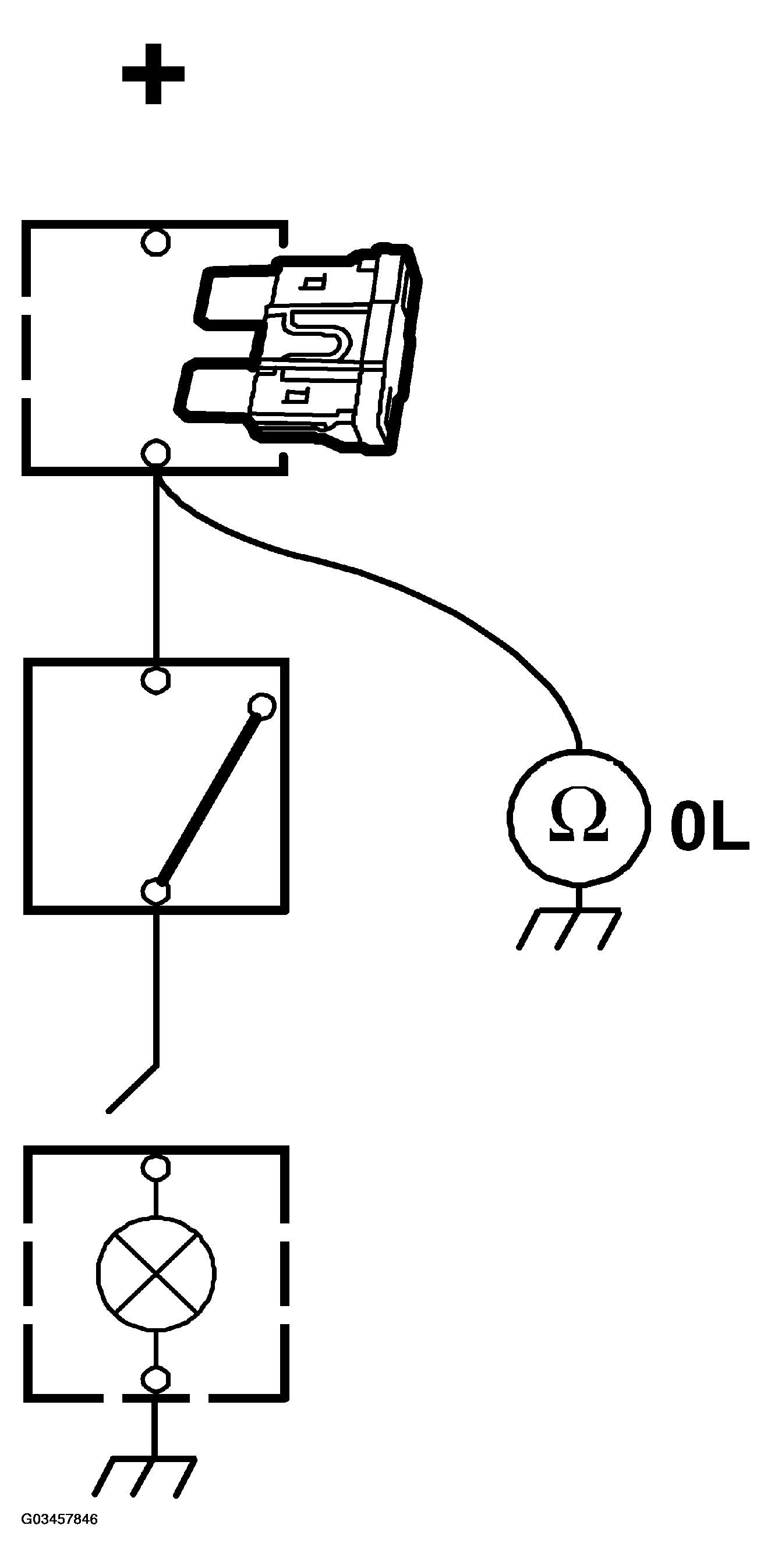

Fig 1: Identifying Jiggle Wiring Harness And Make Sure Multimeter Reading Shows Infinite Resistance (0L) All Time
G03457846

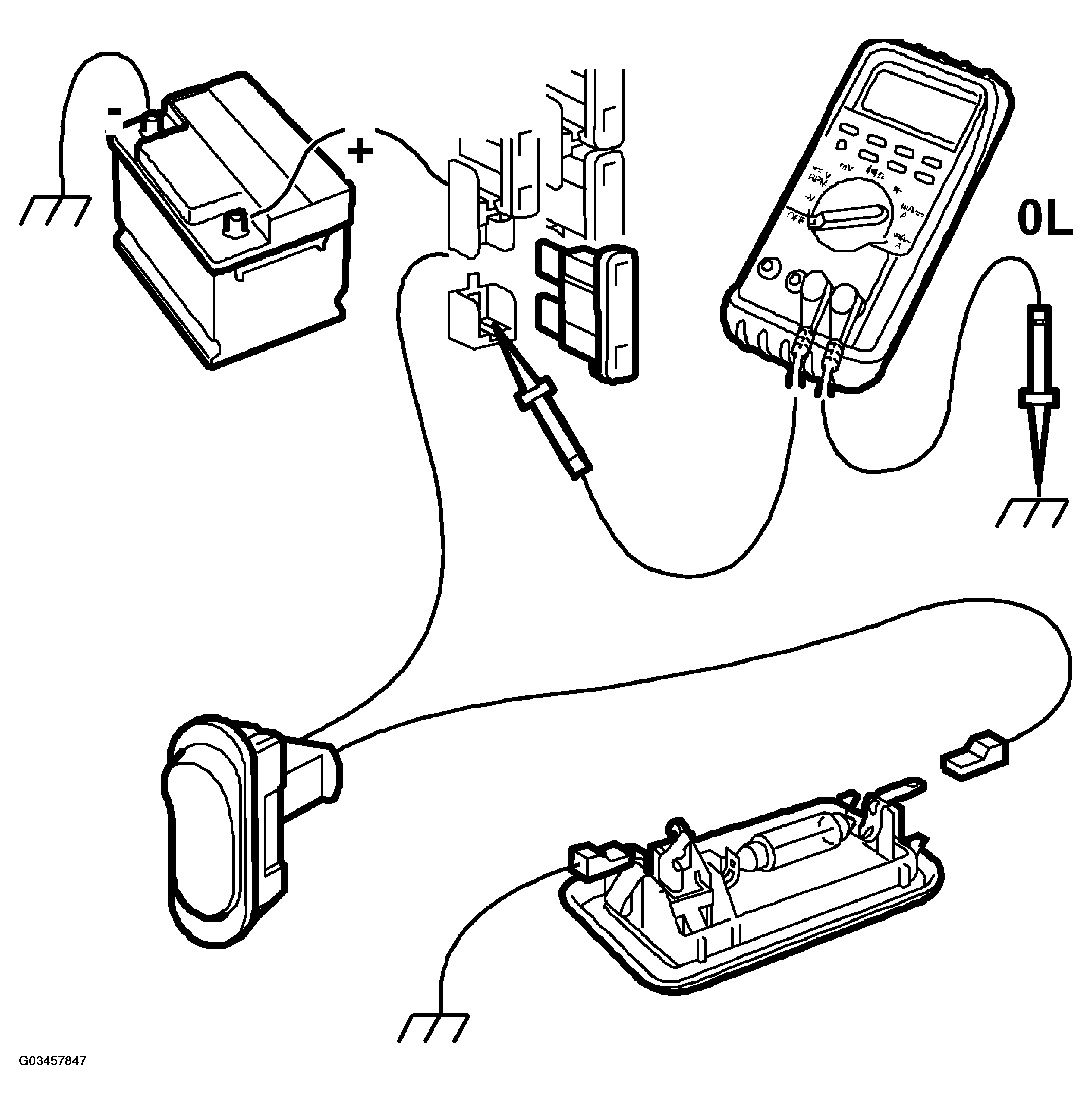

Fig 2: Measuring Ohms
G03457847
  1. Make sure the lead being tested is not under tension (e.g. remove the relevant fuse) and that any loads are disconnected.
  2. Set the multimeter for measuring ohms.
  3. Connect one test lead to a good ground and the other to the point to be tested.
  4. Carefully jiggle the wiring harness and make sure the multimeter reading shows infinite resistance (0L) all the time.
