Generator design: Rectifier

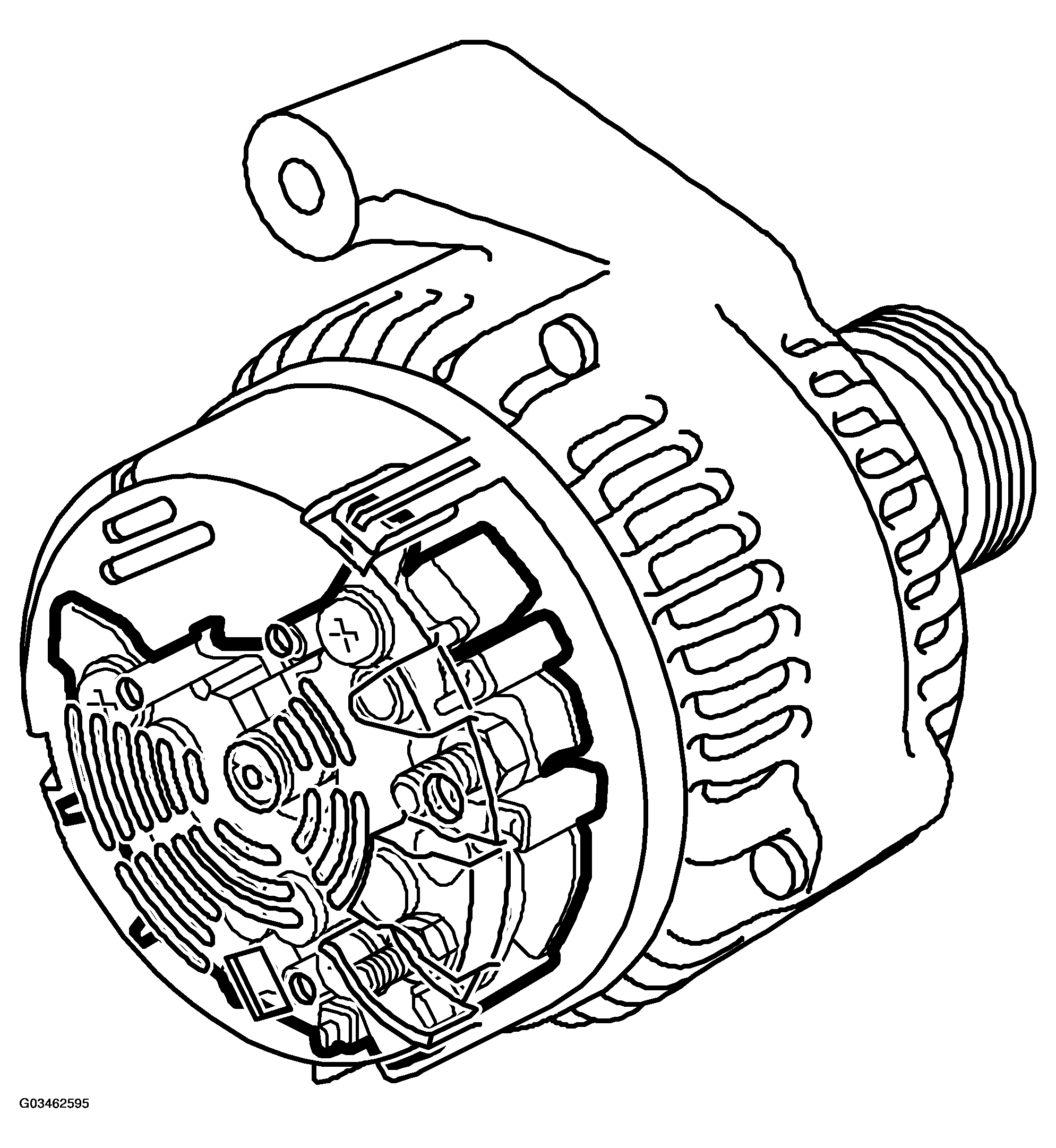

Fig 1: Identifying Stator (Rectifier)
G03462595

The voltage generated in the stator winding must be converted to direct current before it can be used in the car's electrical system.

This is done by six Zener diodes, two for each phase winding.
