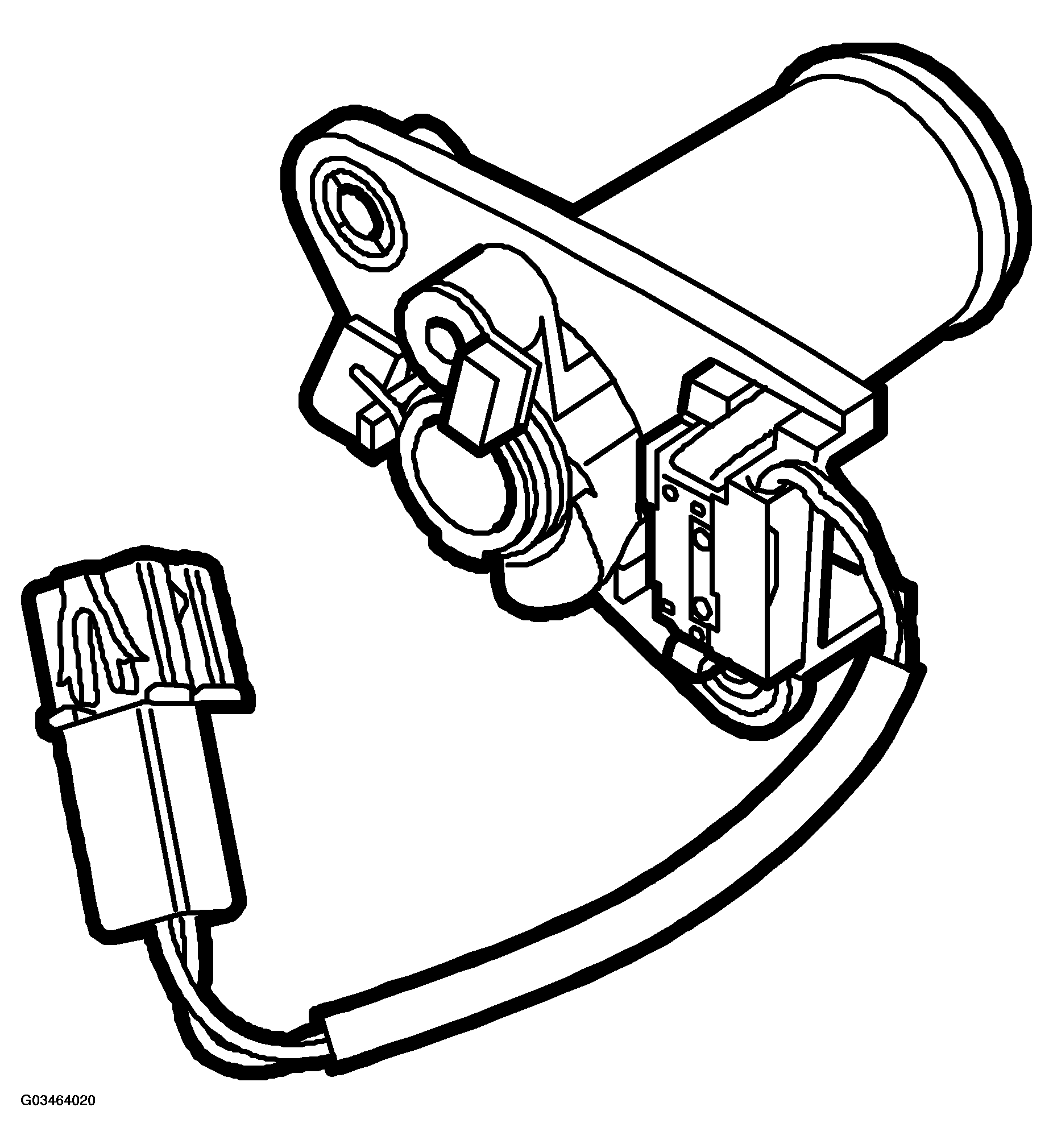

Microswitch in luggage compartment lock, disarm tailgate
Courtesy of SAAB-SCANIA OF AMERICA, INC. MICROSWITCH IN LUGGAGE COMPARTMENT LOCK, DISARM TAILGATE LOCATION AND TYPE
| Location |
|
On tailgate lock cylinder |
| Type |
|
Normally open |
| Power supply PWM approx. 3.5%: |
Pin No. |
1 |
| Ground: |
Pin No. |
2 |
