To fit

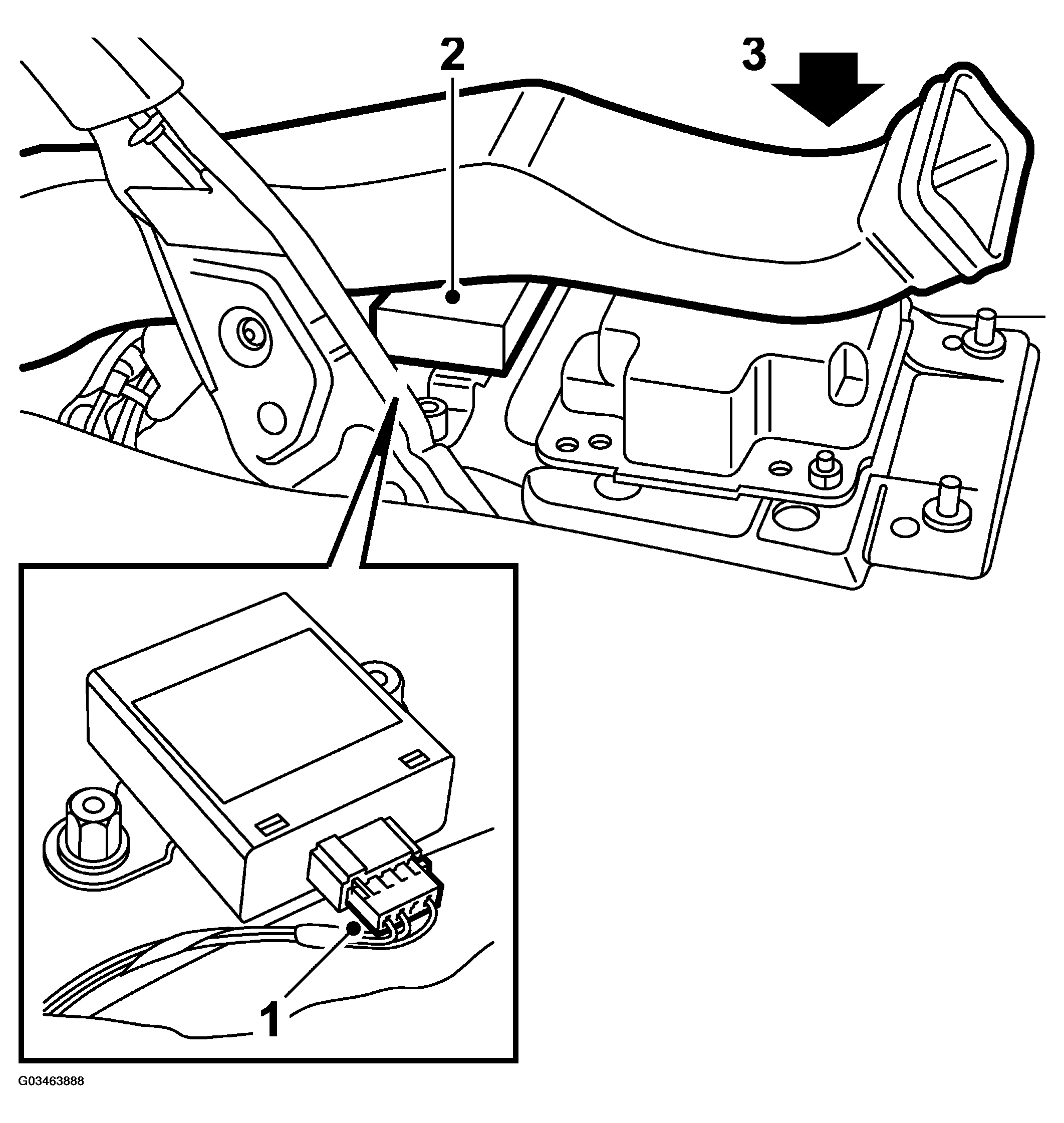

Fig 1: Installing Tilt Sensor
G03463888Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the connector to the tilt sensor.
  2. Fit the sensor on its holder.
  3. Fit the floor duct in position.
  4. Fit the floor console in position.

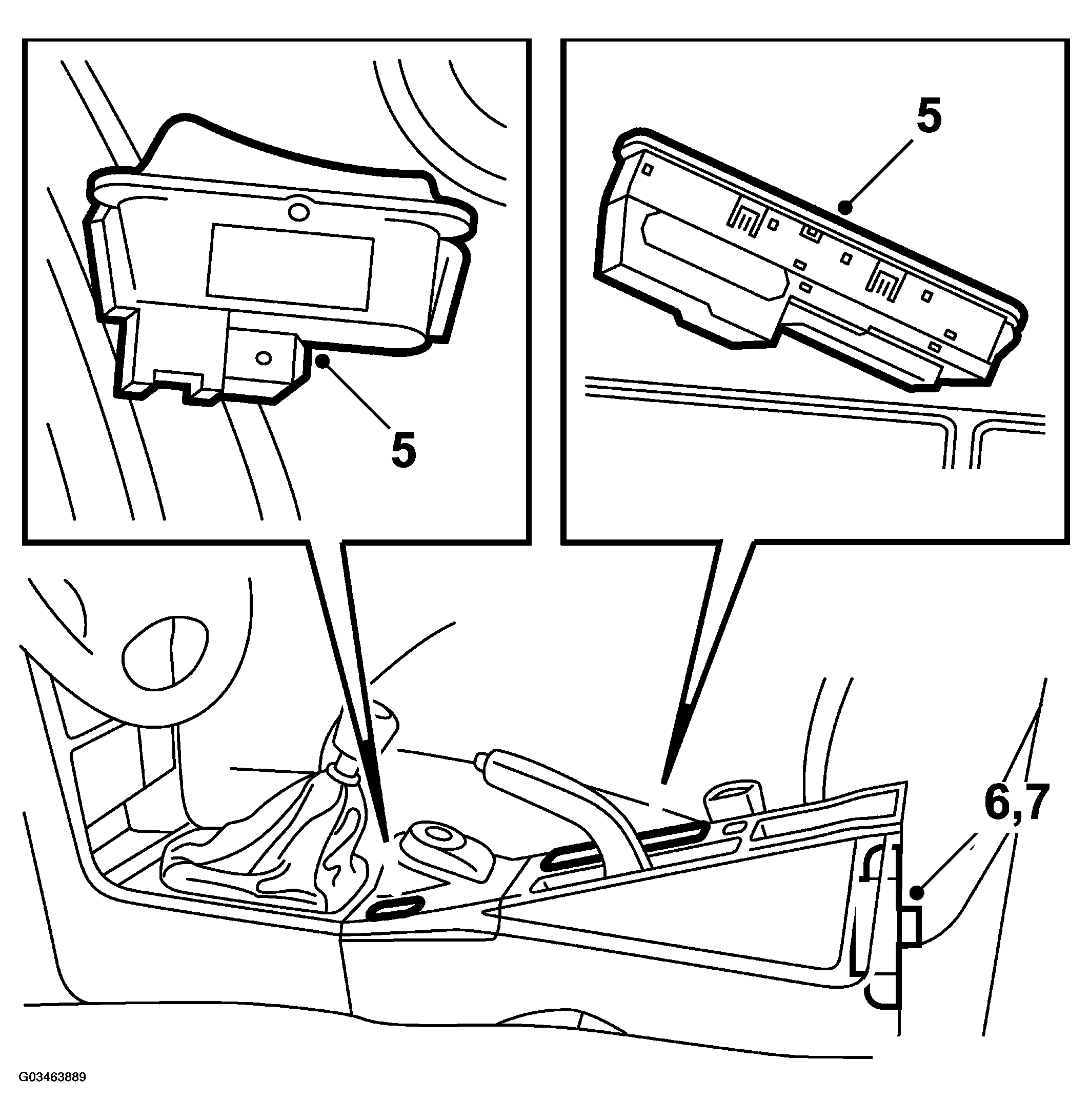

    Fig 2: Installing Interior Lighting Switch
    G03463889Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the switch.
  6. Fit the remote control receiver.
  7. Fit the connector on the receiver.
  8. Screw the floor console in position with the 2 screws and 2 nuts.

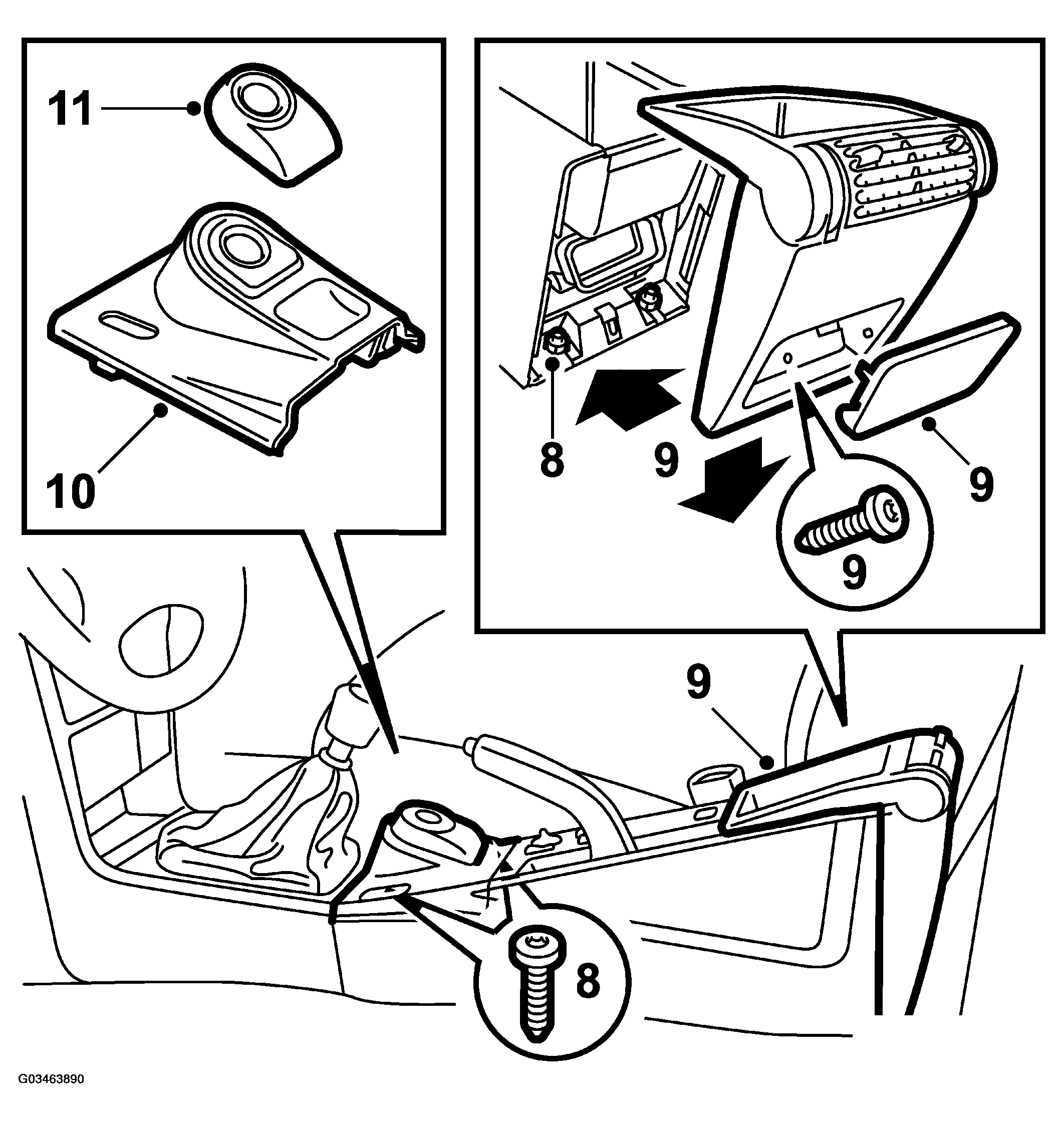

    Fig 3: Installing Rear Section Of Floor Console
    G03463890Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Fit the rear section of the floor console.
  10. Fit the ignition switch cover.
  11. Fit the antenna unit.
