To fit

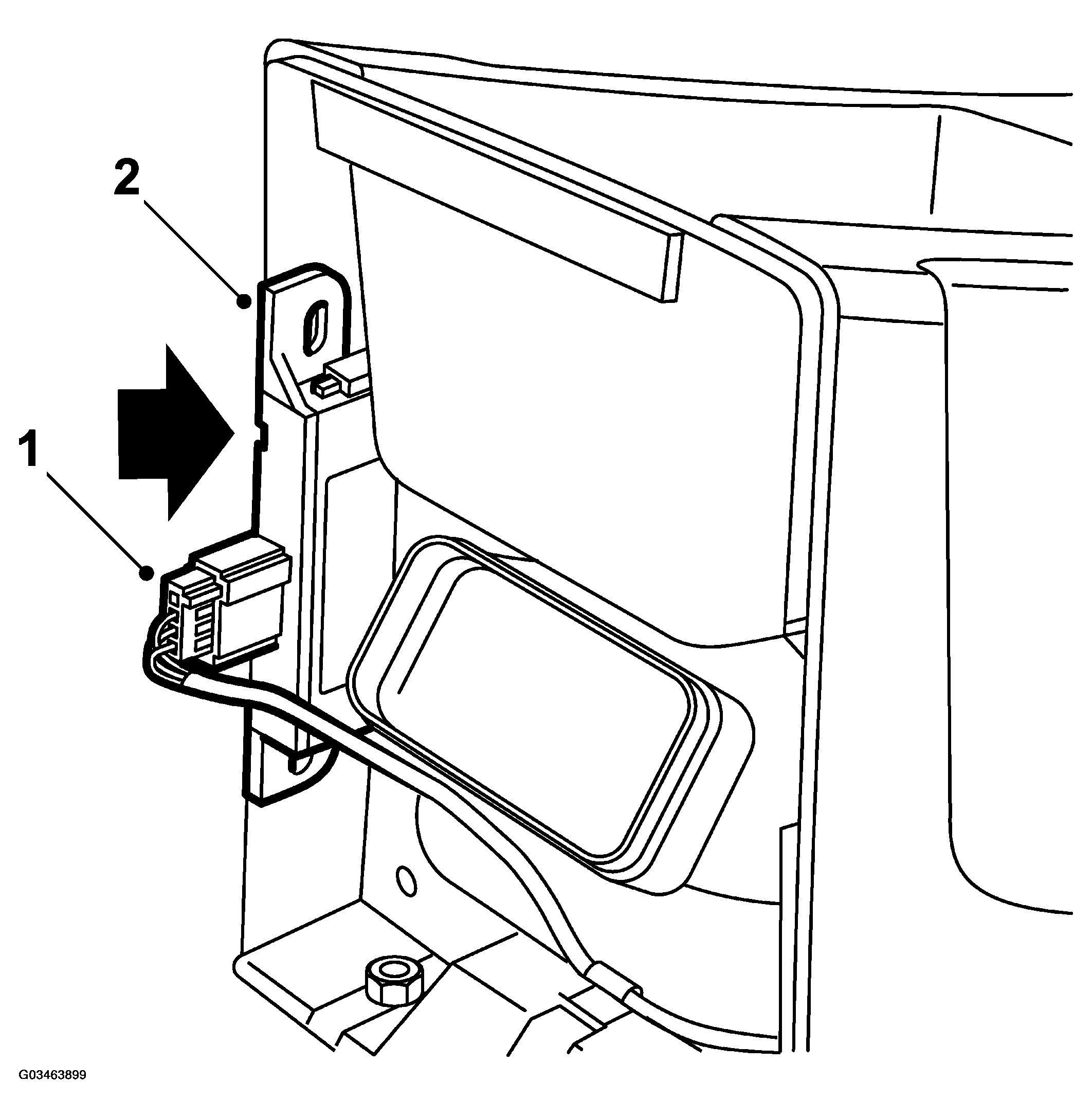

Fig 1: Installing Remote Control Receiver Unit
G03463899Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the connector to the receiver.
  2. Fit the receiver unit.
  3. Fit the rear section of the floor console.

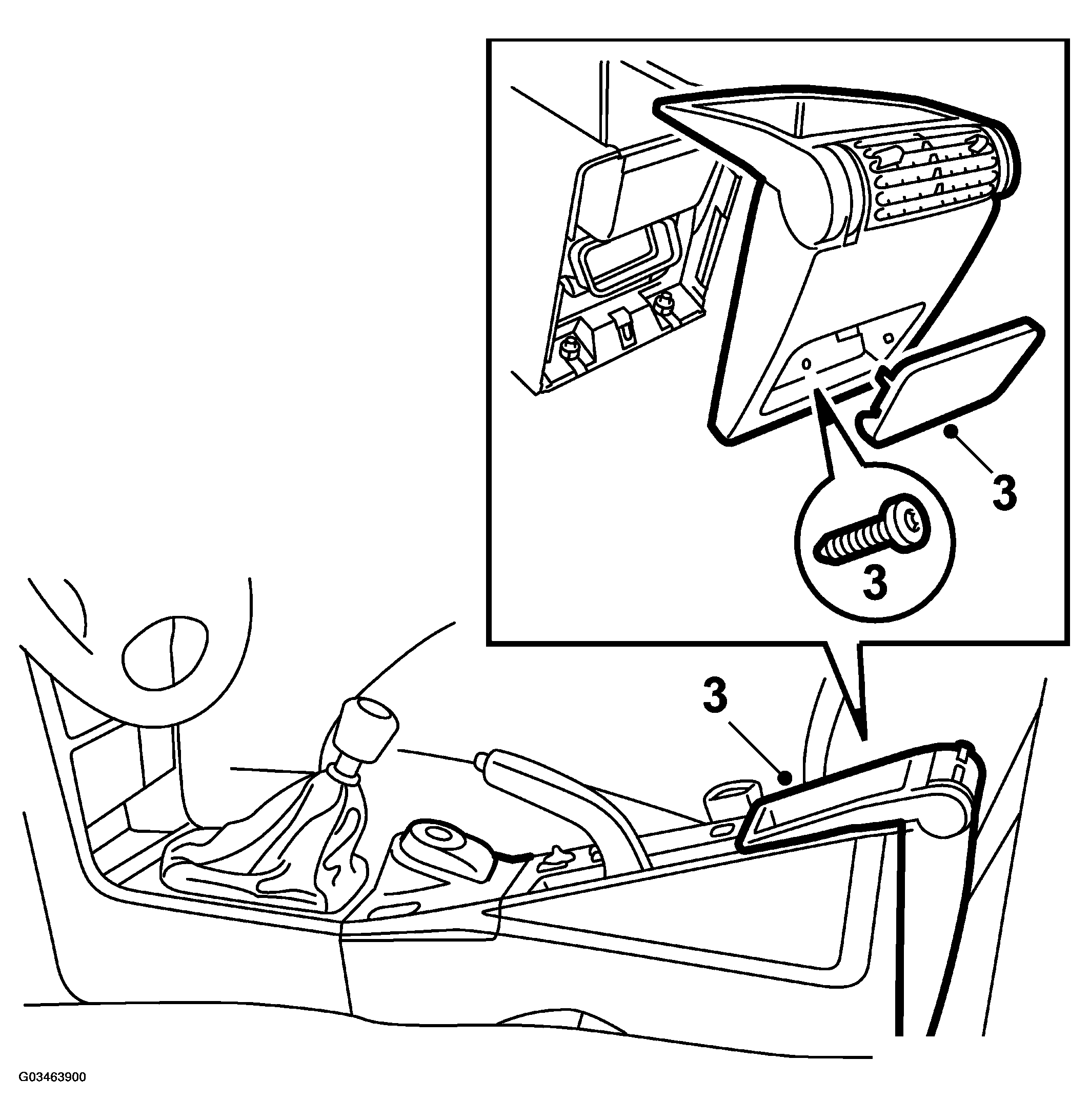

Fig 2: Installing Rear Section Of Floor Console
G03463900Courtesy of SAAB-SCANIA OF AMERICA, INC.
