To remove

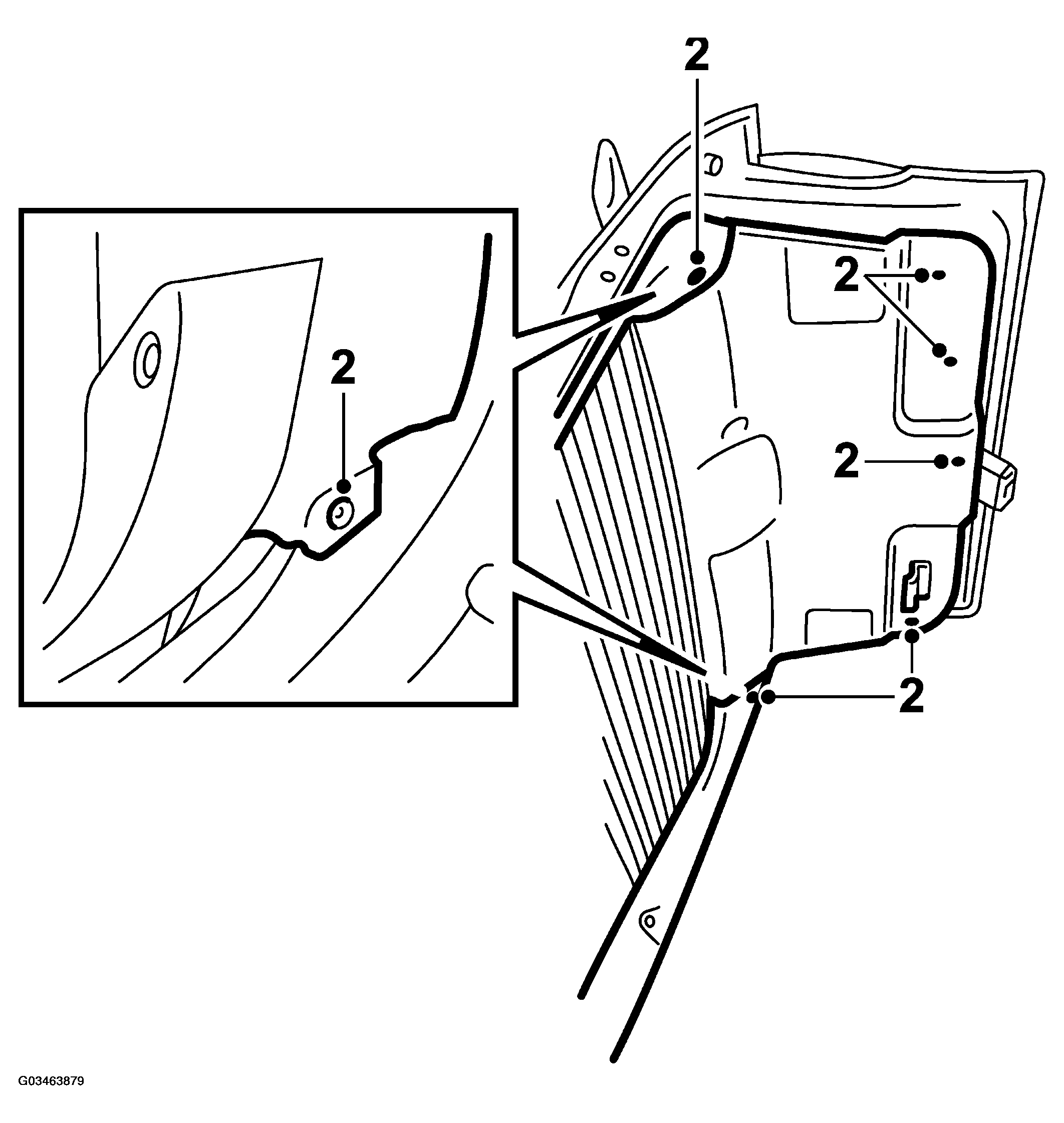

Fig 1: Removing Tailgate Trim
G03463879Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Open the tailgate.
  2. Remove the tailgate trim.
  3. Disconnect the electrical connector from the microswitch.

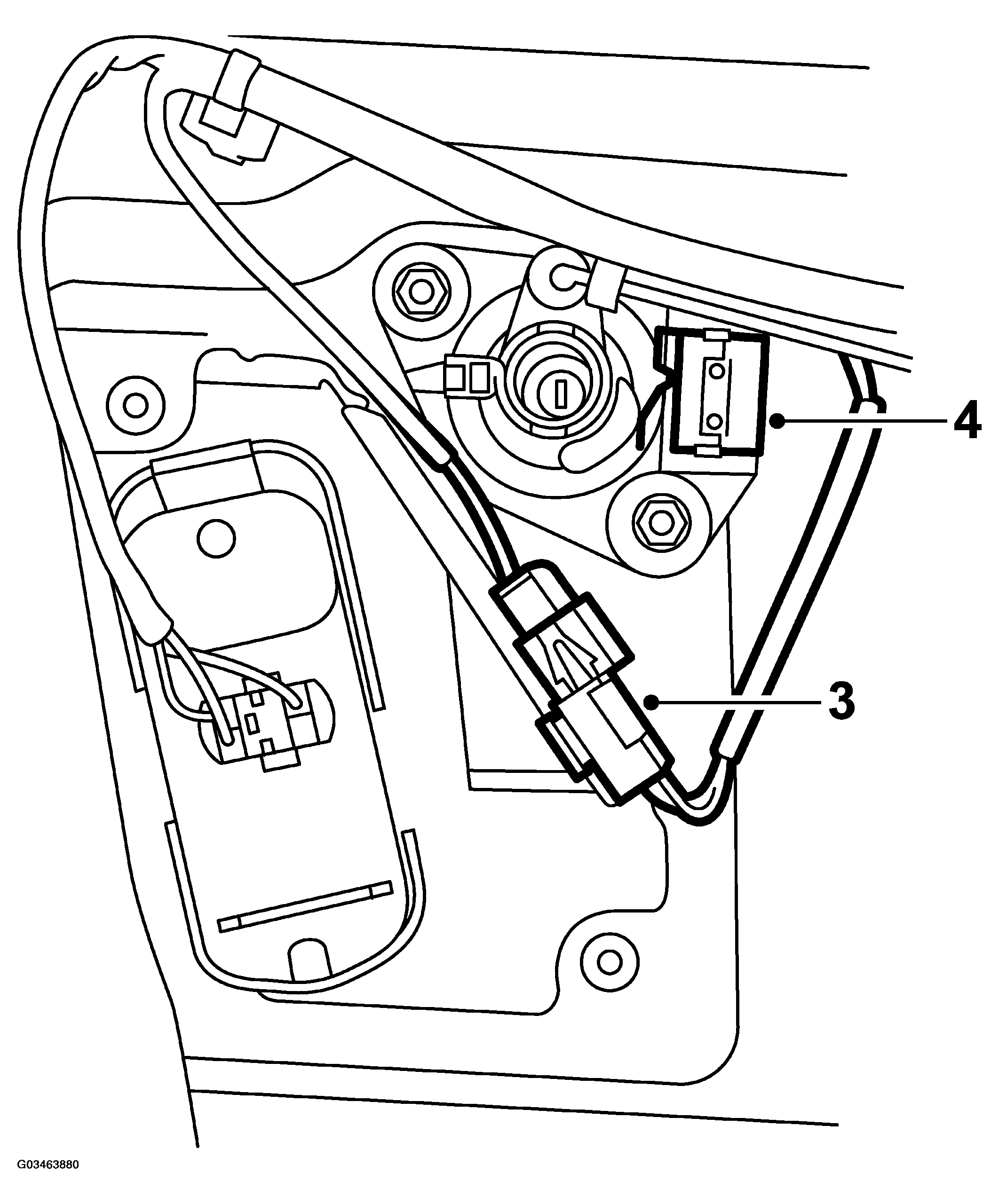

    Fig 2: Removing Microswitch From Luggage Compartment Lock
    G03463880Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Release the microswitch from the luggage compartment lock.
