Home >> Saab >> 2000 >> 9-3 Base, 2D Convertible, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Theft Protection >> Adjustment - Replacement >> Glass breakage sensor >> To fit

To fit

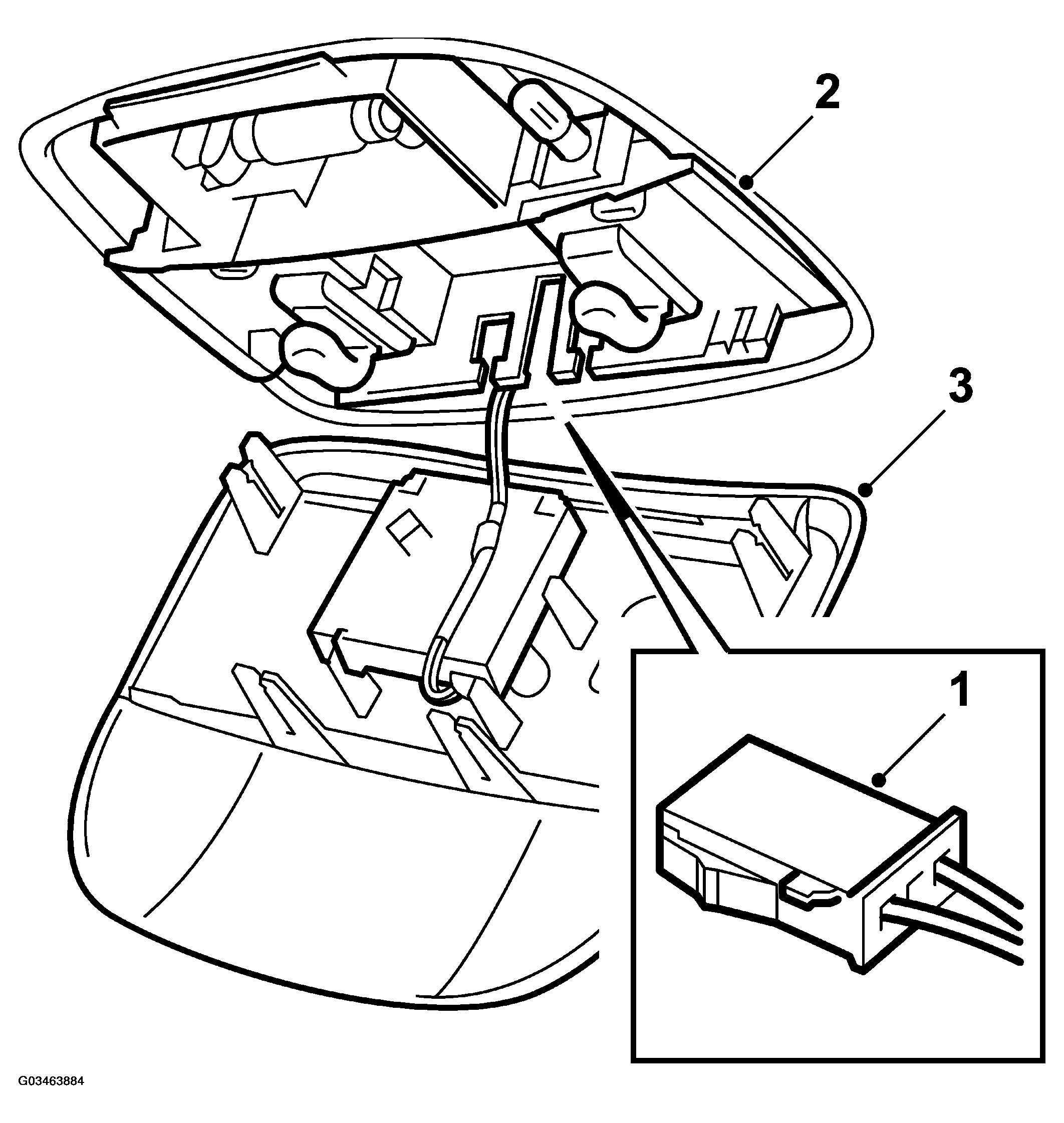

Fig 1: Installing Glass Breakage Sensor
G03463884Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Replace the connector. Ensure that the connector is properly seated and attached to avoid vibrations.
  2. Fir the switch panel. Start with the front edge and push it forwards. Then press the rear edge upwards.
  3. Fit the lens cover.
