Testing For Open Circuits By Measuring Resistance

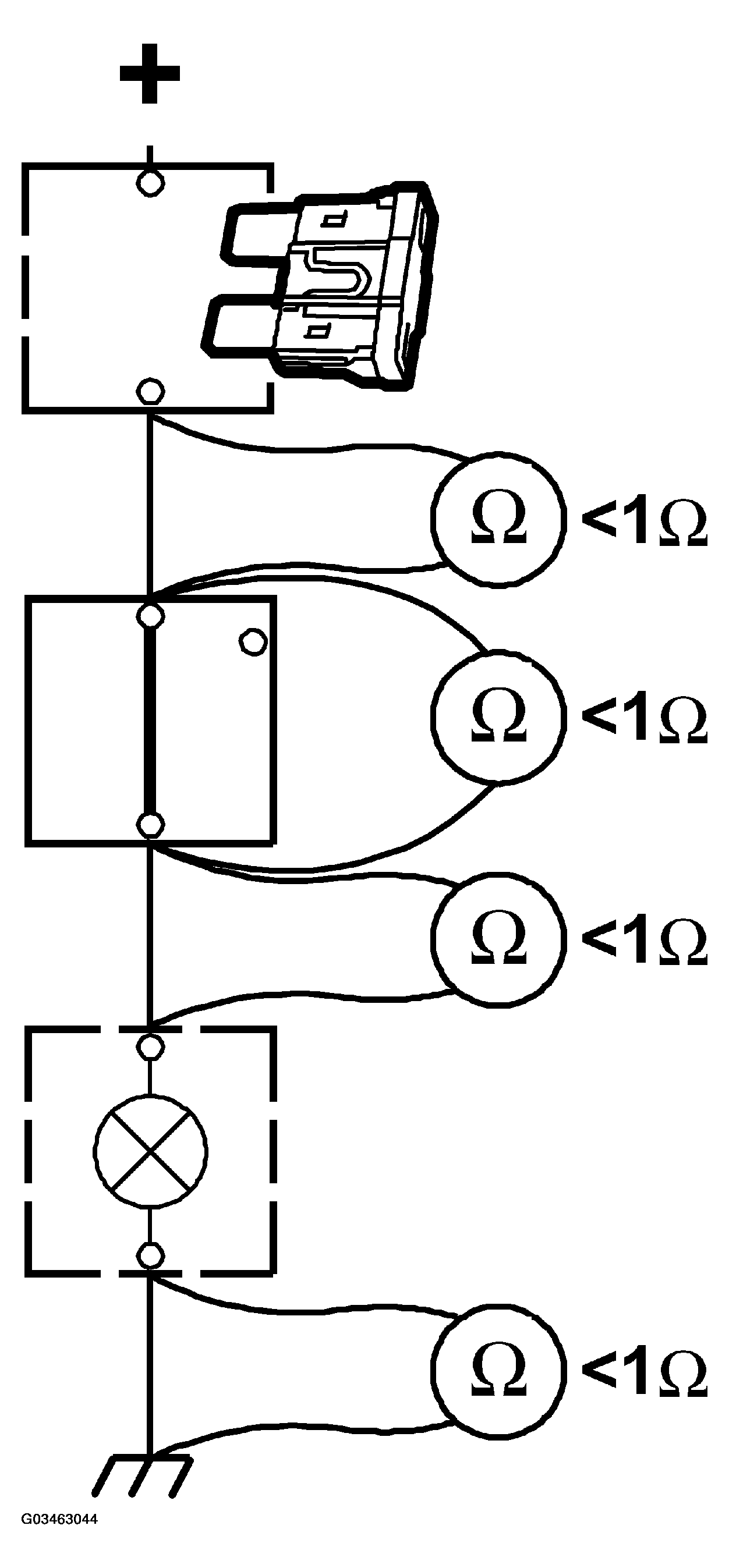

Fig 1: Identifying Terminal Connector Voltage (1 Of 2)
G03463044

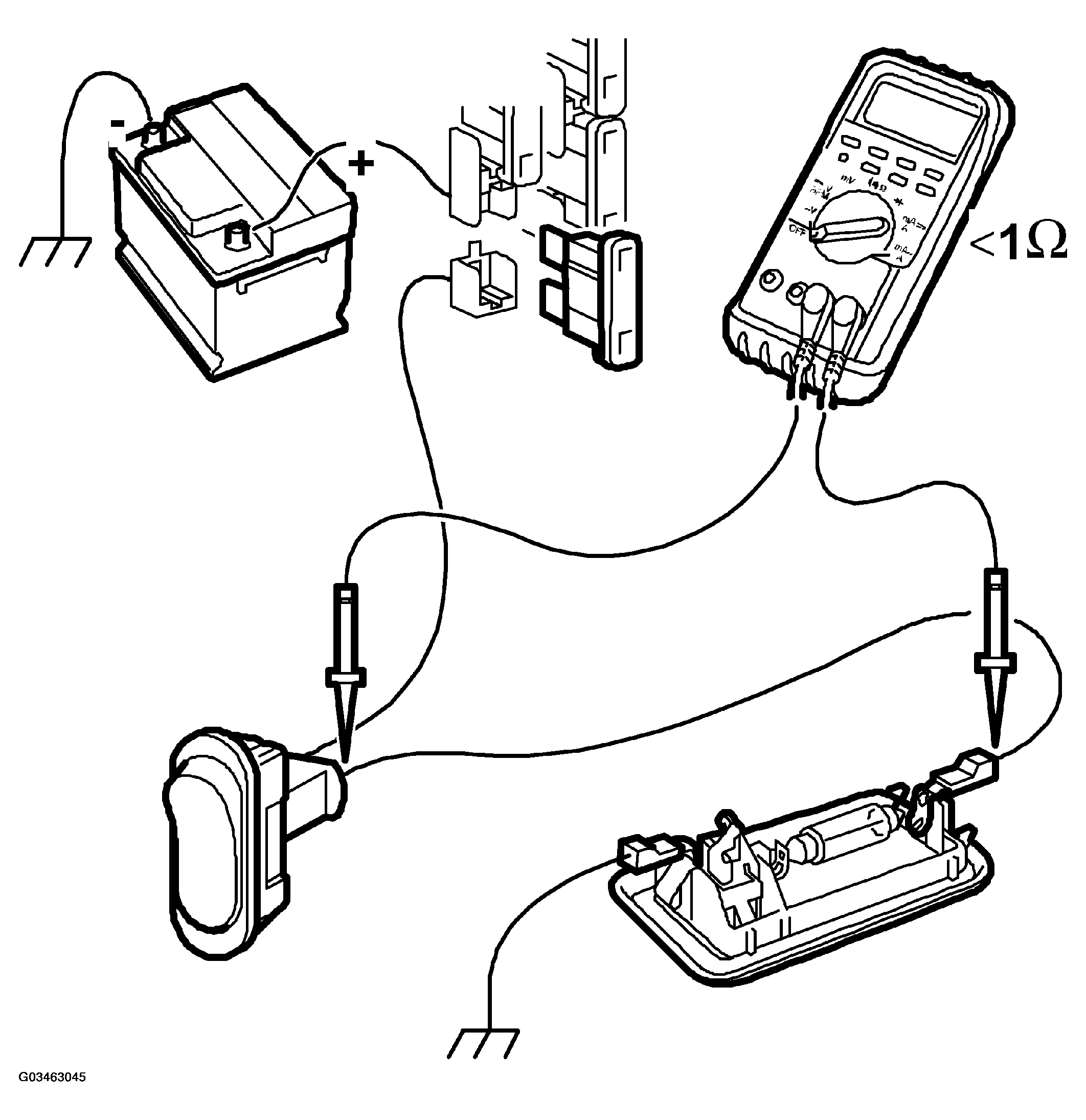

Fig 2: Identifying Terminal Connector Voltage (2 Of 2)
G03463045
  1. Make sure the component or lead to be tested is not under tension (e.g. by removing the relevant fuse).
  2. Set the multimeter for measuring ohms and connect the ohmmeter to each end of the component/lead to be tested.
  3. Jiggle the relevant wiring harness while observing the ohmmeter.

    Normally, the resistance of a wiring harness is less than 1 ohm. Specified values apply to components.
