To remove

  1. Remove the rim around the indicator display.

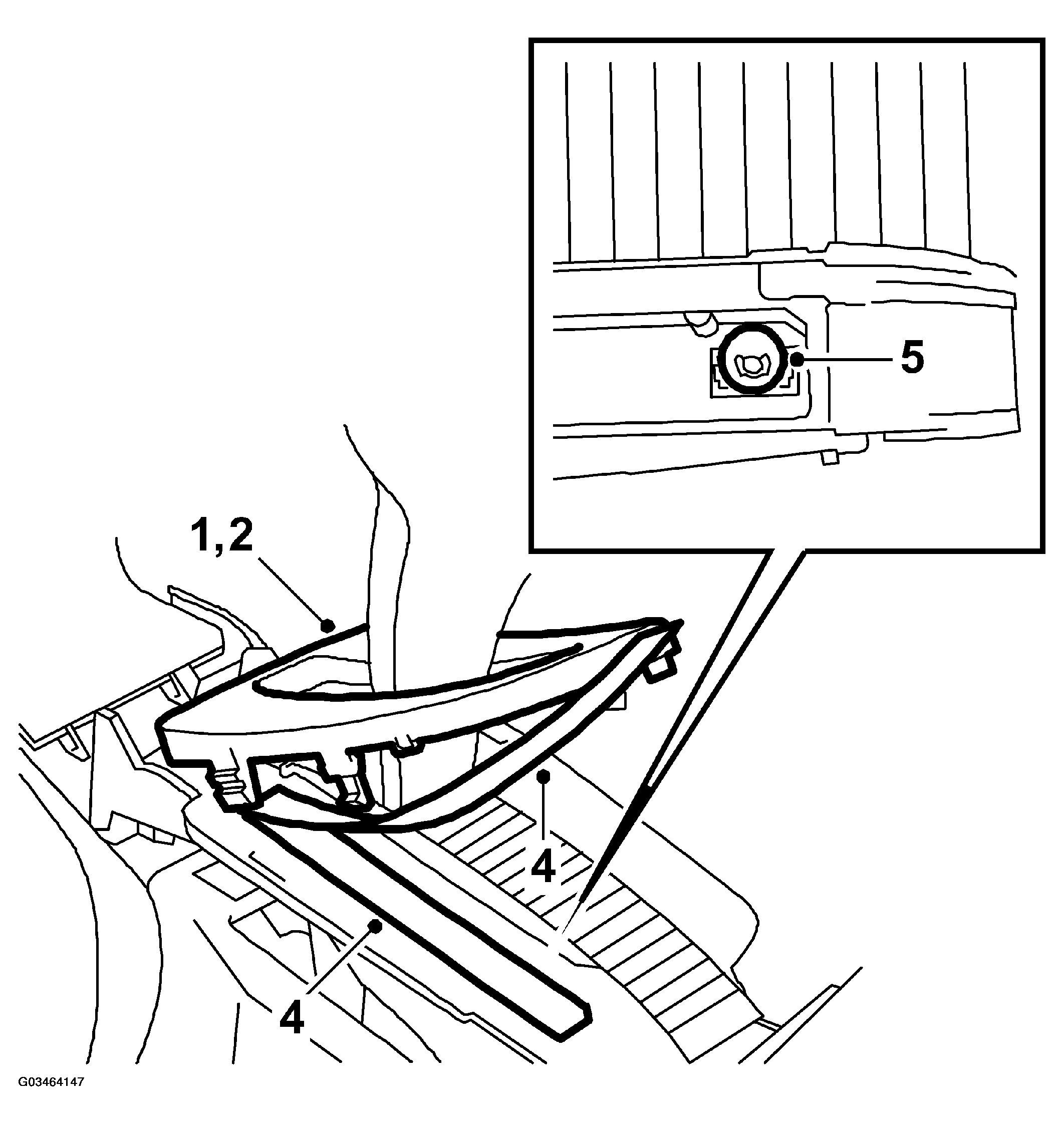

    2. Fig 1: Illustrating Steps 1, 2, 4 & 5
    G03464147Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the indicator display by carefully pressing in the catches.
  3. Lift up the indicator display.
  4. Lift up the green strip and remove the grid.
  5. Remove the lamp with a pair of pliers.
