Home >> Saab >> 2000 >> 9-3 Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Gear Selector Mechanism (Automatic) >> Adjustment-Replacement >> Ignition switch cylinder >> To remove

To remove

  1. Remove the transponder.

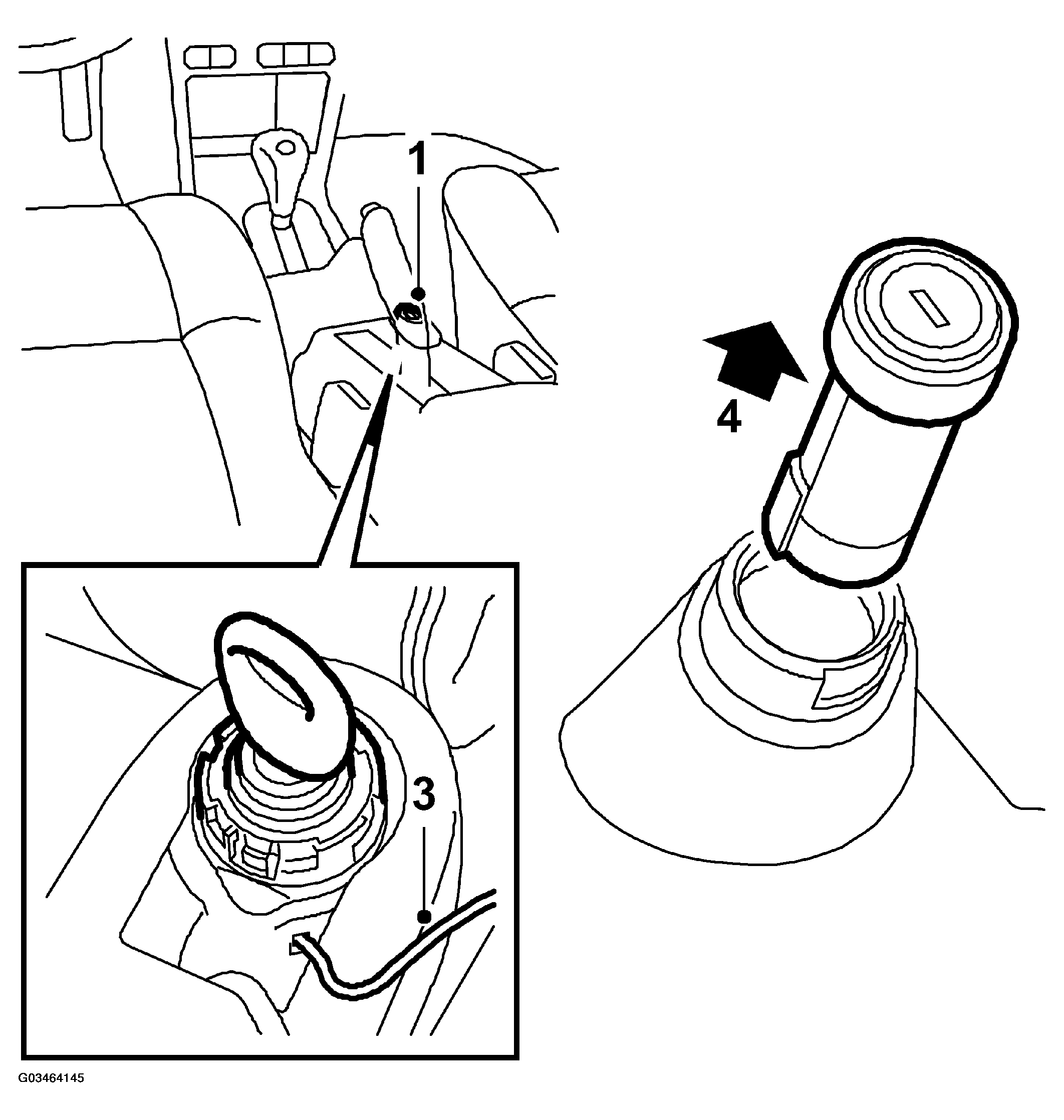

    Fig 1: Illustrating Steps 1, 3 & 4
    G03464145Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Turn the ignition switch to the OFF position.
  3. Bend a welding rod.
  4. Remove the lock cylinder by pressing in the catch with the welding rod and withdrawing the cylinder straight up.
