Removal & Installation

ABS ECM is integral with hydraulic unit. Disconnect ABS ECM electrical connector. Remove 6 screws and lift out ECM. See Fig 1 . Leave washers on hydraulic unit. To install, reverse removal procedure.

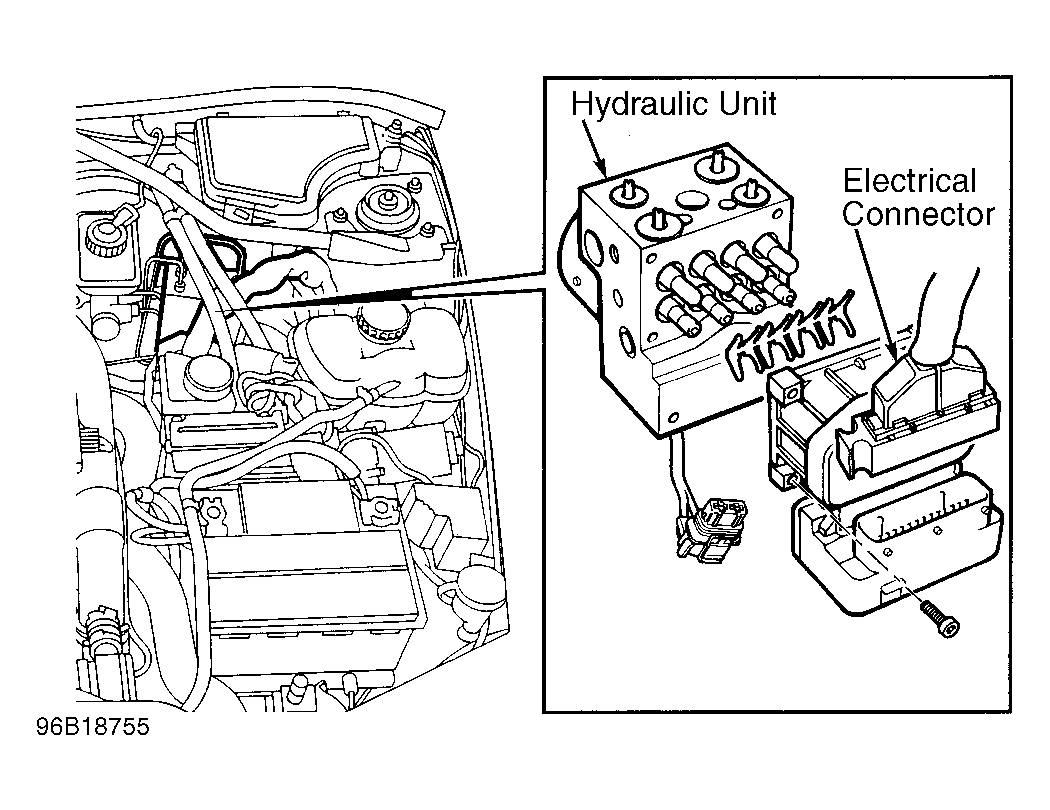

Fig 1: Removing ABS Electronic Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.
