DTC P0112, P0113: Intake Air Temperature Sensor, Input To Control Module Low/High: Notes

Intake air temperature sensor, input to control module low/high, faulty, no continuity or shorting to ground/batt+.

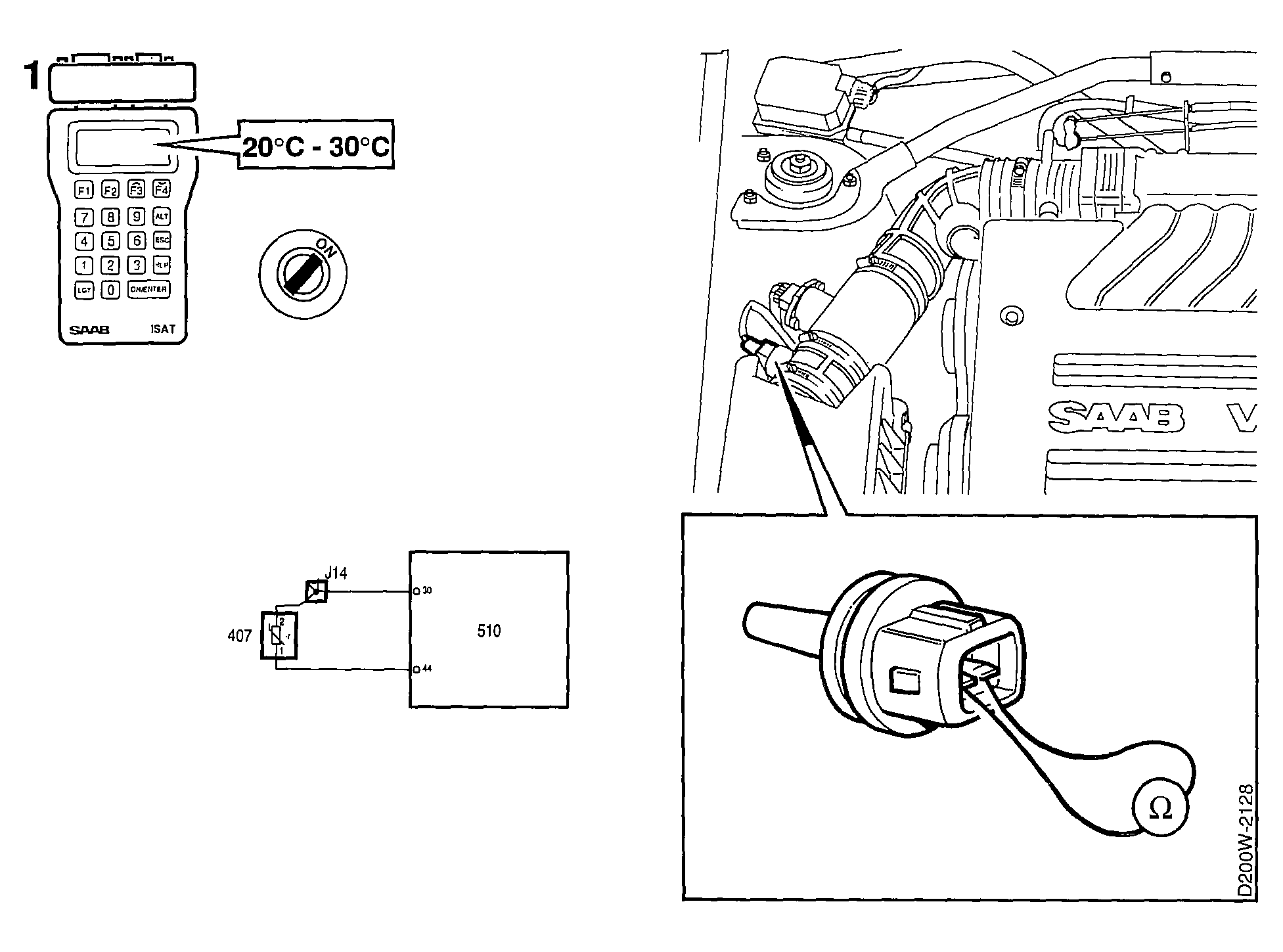

Fig 1: Fault Diagnosis Circuit Diagram - P0112, P0113
G04369980Courtesy of SAAB-SCANIA OF AMERICA, INC.
