DTC P0102, P0103: Mass Air Flow Sensor, Input To Control Module Low/High: Notes

Mass air flow sensor, input to control module low/high, no continuity or shorting to ground/batt+.

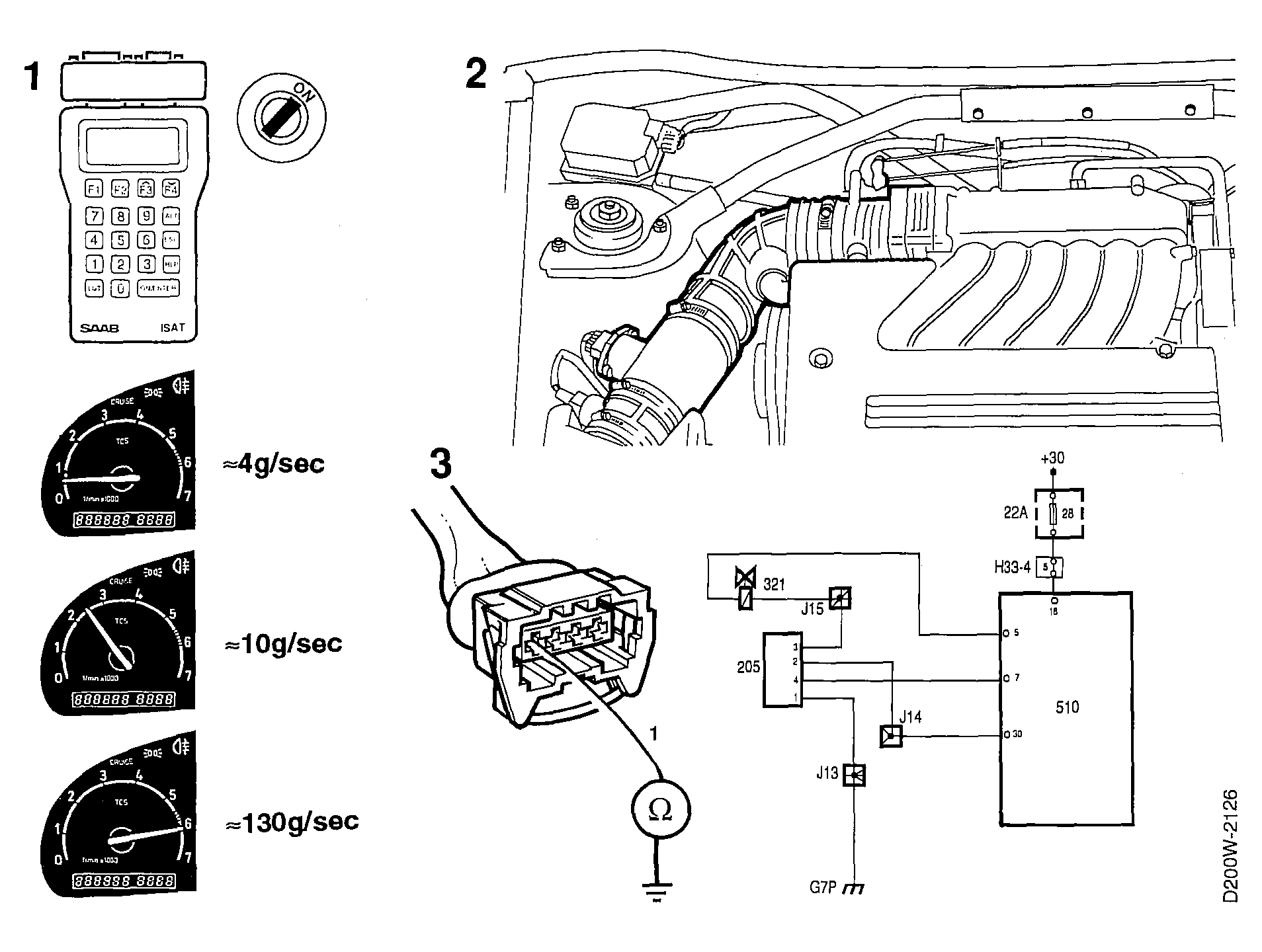

Fig 1: Fault Diagnosis Circuit Diagram - P0102, P0103
G04369978Courtesy of SAAB-SCANIA OF AMERICA, INC.
