Programming Data Update On Central Computer

Information

The procedure described here must only  be used if:

• There is a Technical Information  (TI) or Symptom-based repair instructions  (SY) relating to the customer complaint
• The central computer was replaced.
• The vehicle is assigned to a campaign  that involves carrying out a corresponding software update

The programming code and the approved software part number can be found in the specified documents.

Damage to the control unit cannot be ruled out if the software is used by other vehicles.

Information

The USB storage medium USB type A+C 32 GB with part number V04014999WW000  must be used for installation using an USB stick.

Information

The instructions in the Tester  take precedence, since the description may be different with later Tester releases.

The procedure described here has been structured in general terms. Different text or additional information may appear in the Tester  .

For vehicles up to MY 2021 (MIB 2), continue with Step 1.

For vehicles from MY 2022 (MIB 3), continue with Step  2.

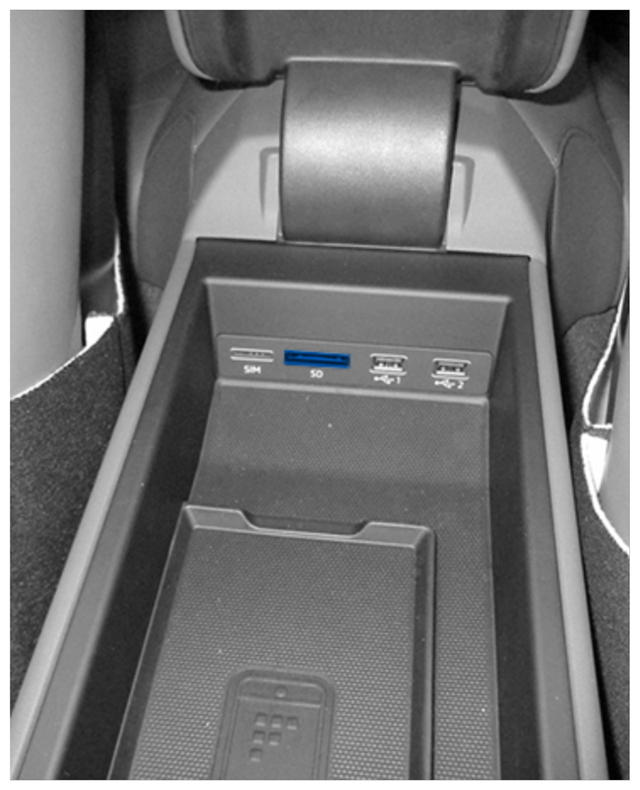

1. Insert SD card containing the vehicle-specific data into the SD card slot on the center console.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   SD card slot

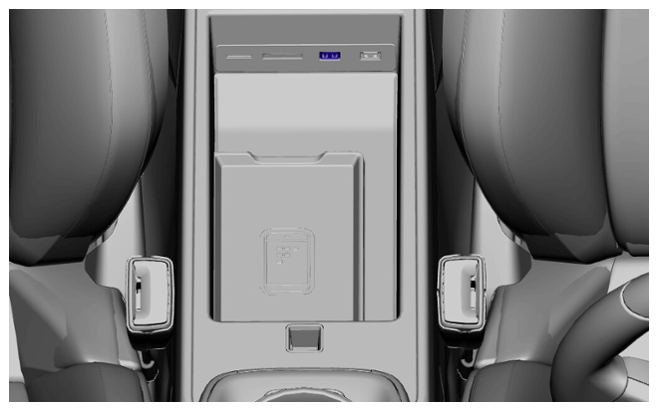

2. Insert USB stick containing the vehicle-specific data into the USB slot on the center console.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   USB slot

   All vehicles

3. Connect the Tester to the vehicle and start it. Switch on ignition.

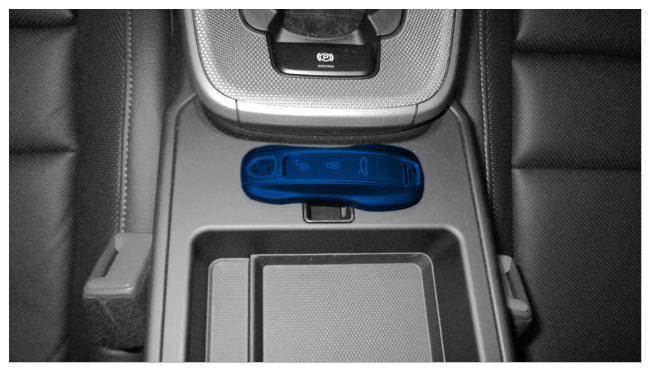

4. Place original remote control (hand-held transmitter) in emergency start tray.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Emergency start tray

5. Select the vehicle type if necessary.
6. Select the PCM  control unit in the overview  . Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
7. Select Maintenance/repairs  .
8. Select Install software update  .
   1. 8.1 Read and follow the instructions and information on the Tester.
   2. 8.2 Perform software update according to menu guidance.
9. If fitted: Code the amplifier.
   1. 9.1 Select Amplifier  .
   2. 9.2 Select Coding/programming  .
   3. 9.3 Select Automatic coding  . Press F12 to continue.
10. Read out the fault memory  , correct faults that are stored if necessary and clear the fault memory.
11. Exit the diagnostic application. Switch off ignition. Disconnect the Tester from the vehicle.
12. Remove SD card or USB stick from the vehicle.
