Replacing Roll-Over Bar

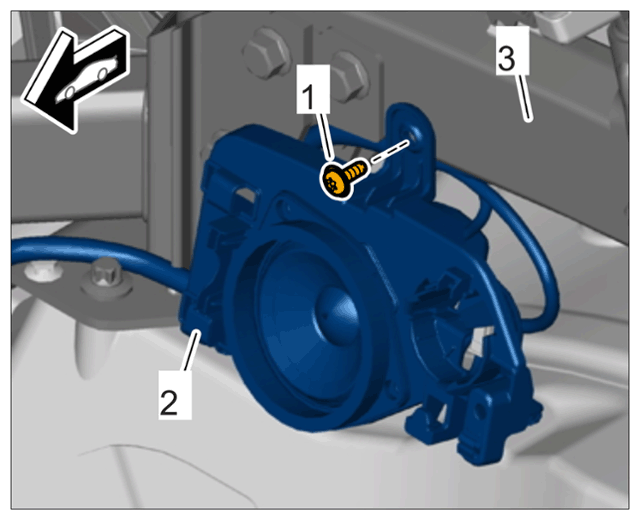

  1. Unscrew and remove screws -1-  on loudspeaker bracket -2-  at the left and right.
  2. Remove loudspeaker bracket -2-  at the left and right from the roll-over bar -3-  .
    G14954807Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Install loudspeaker bracket at the left and right on the new roll-over bar in reverse order.
