Removing Control Unit For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

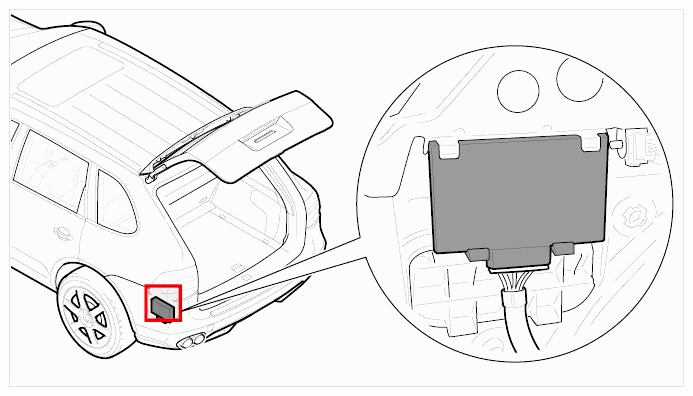

Fig 1: Identifying Installation Position Of Control Unit For Rear Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

Only for vehicles without auxiliary air conditioner.

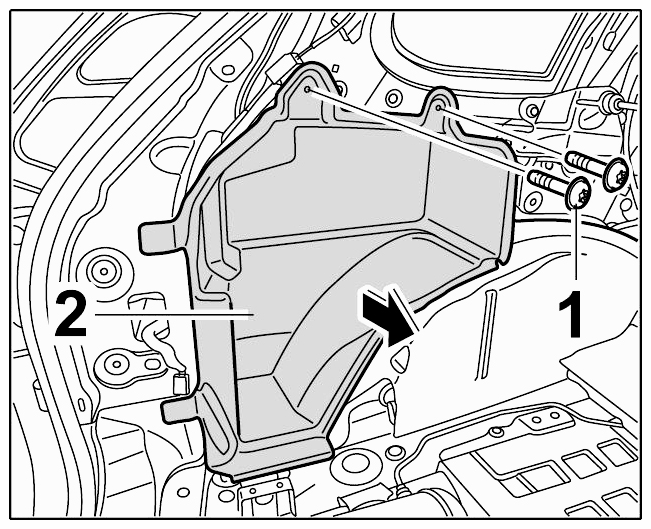

Unscrew fastening screws -1- and remove package box -2- (-arrow-) .

Fig 2: Removing Package Box

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

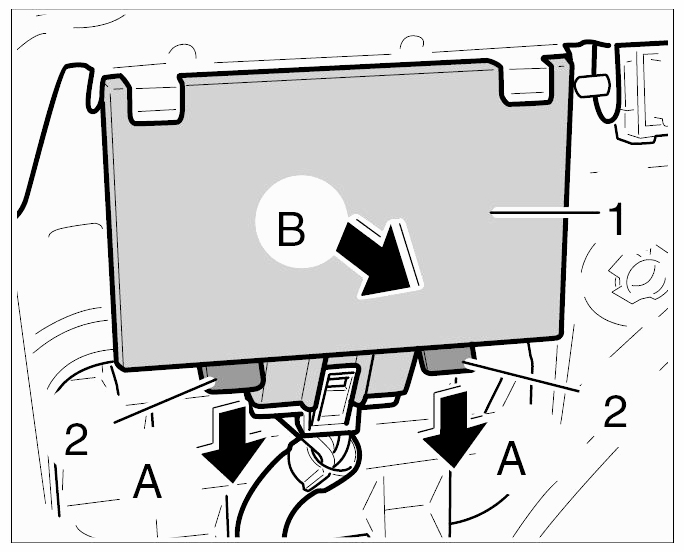

Release the two clips -2- (-arrows A-) and take control unit for rear lid -1- out of the holder -arrow B- .

Fig 3: Removing Control Unit For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connector -arrow A- and pull it off the control unit for rear lid -arrow B- .

Fig 4: Pulling Connector Off Control Unit For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
