Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2015 Land Rover Range Rover, and 2014 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
  3. Refer to: FRONT BUMPER COVER .
  4. CAUTION: Vehicles with petrol engine only.
    NOTE: The following step is required if a front mounted cooling fan is installed to the vehicle.

    Refer to: CONDENSER - V8 N/A 5.0L PETROL .

    Refer to: CONDENSER - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL .

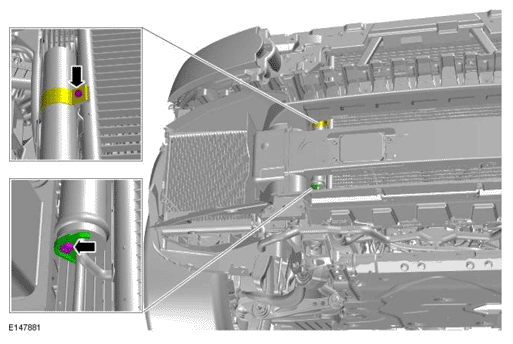

  5. G11701496

    Torque Specification: 4 Nm

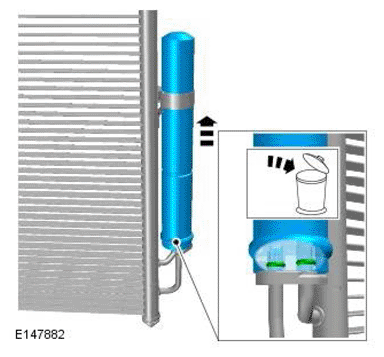

  6. NOTE: Discard the o-ring seals.
    G11701497

    Renew Part: Air conditioning pipes O-ring seals Quantity: 1  .
