General Procedures: Charging

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2015 Land Rover Range Rover, and 2014 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: The system must be evacuated for 30 minutes immediately before recharging commences. Delay between evacuation and recharging is not permitted.
  2. Following the AC Charging Trolley Manufacturers Instructions, make sure the correct amount of oil is added to the A/C system before or during recharging.
  3. CAUTION: Recharge the A/C System only through the systems high pressure port.

    Recharge the A/C system to the correct specification.

    Refer to: SPECIFICATIONS .

  4. Disconnect the high and low pressure connections.
  5. NOTE: All vehicles.

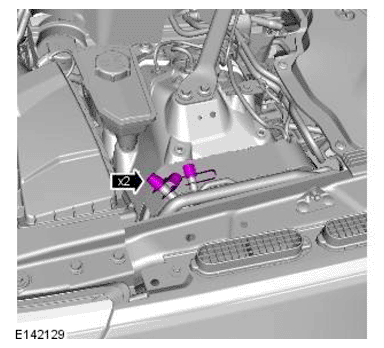

    G11701260

    Install and firmly tighten the caps that cover the high and low pressure connections.

    Torque Specification: 6 Nm
