Installing airbag triggering unit

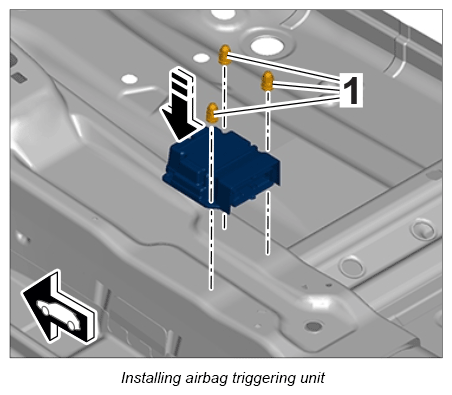

  1. Position airbag triggering unit on the center tunnel and secure with fastening nuts -1-  . → Tightening torque: 9 Nm (6.5 ft lb.)+10 %-15 %
    G12836127Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect electric plug connection.
    1. 2.1. Connect electric plug connection -A-  .
    2. 2.2. Lock locking clip on the connector as far as it will go -B-  .
    3. 2.3. Close the lock on the connector -C-  .
G12836128Courtesy of PORSCHE CARS NORTH AMERICA, INC.
