Installing front airbag sensor

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

Information

• Make sure that the airbag sensor is positioned correctly  .

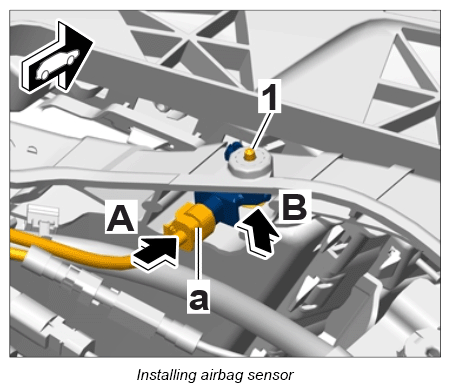

1. Position the sensor -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Always replace screws and nuts after customer service and reworking. Micro-self-locking screws must not be treated, greased or loosened and then screwed on again.

2. Tighten fastening screw -1-  for front airbag sensor to → Tightening torque: 9 Nm (6.5 ft lb.)  .
3. Plug in electric plug connection -A-  and lock it -a-  .
