Removing knock sensor

  1. Observe and note installation position of knock sensors.

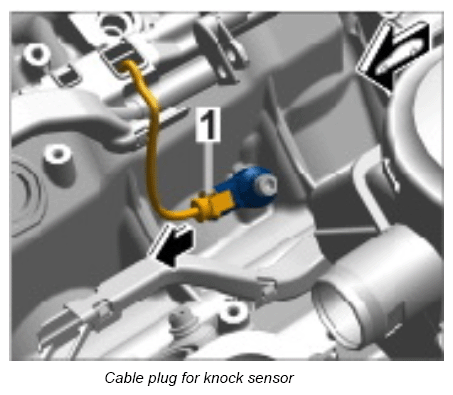

    Disconnect cable plug -1-  .

    G12834033Courtesy of PORSCHE CARS NORTH AMERICA, INC.

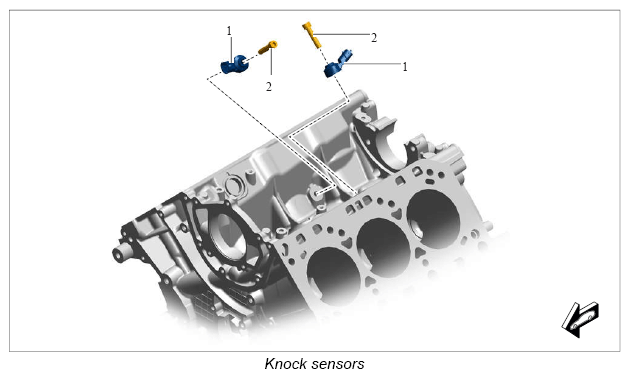

  2. Loosen and unscrew fastening screw -2-  and remove knock sensor -1 -  from the crankcase.
    G12834034Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1  Knock sensor
2  Screw, M8 x 35
