Replacing accelerator pedal module: Notes

  1. Switch off ignition.

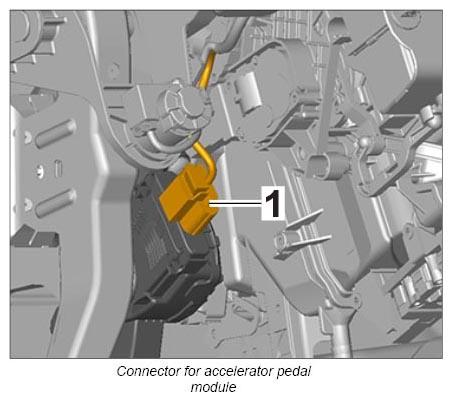

  2. Disconnect connector -1-  on accelerator pedal module.
    G12833730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

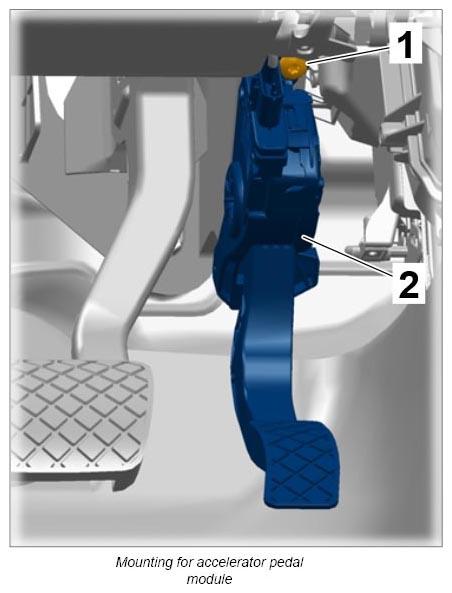

  3. Unscrew fastening screw -1-  on the accelerator pedal module -2-  .
    G12833731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

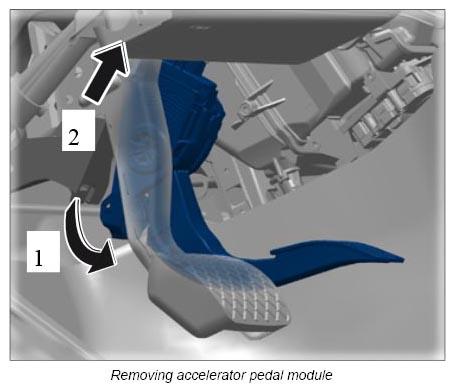

  4. Remove accelerator pedal module -arrows 1 and 2-  .
    G12833732Courtesy of PORSCHE CARS NORTH AMERICA, INC.
