Removing Fuse Element In Power Distributor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to loads or to the control unit

→ Disconnect the battery before removing the component or control unit.

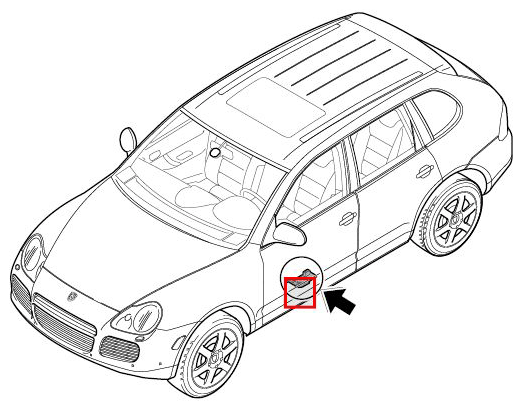

Fig 1: Overview Of Fuse Element In Power Distributor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move front left seat back and up as far as possible. Move backrest fully forward.
Unclip front seat trim towards the front -arrow A- .

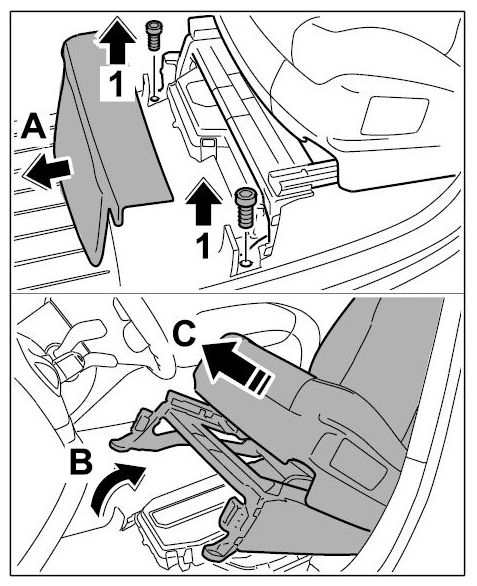

Fig 2: Loosening Seat Trim And Seat, Folding Seat Back
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold the carpet sections forward and remove the two fastening screws -arrows 1- .
Fold the seat back as far as possible -arrow B- . With the seat in its folded position, move the seat forward again using the fore-and-aft adjustment -arrow C- .

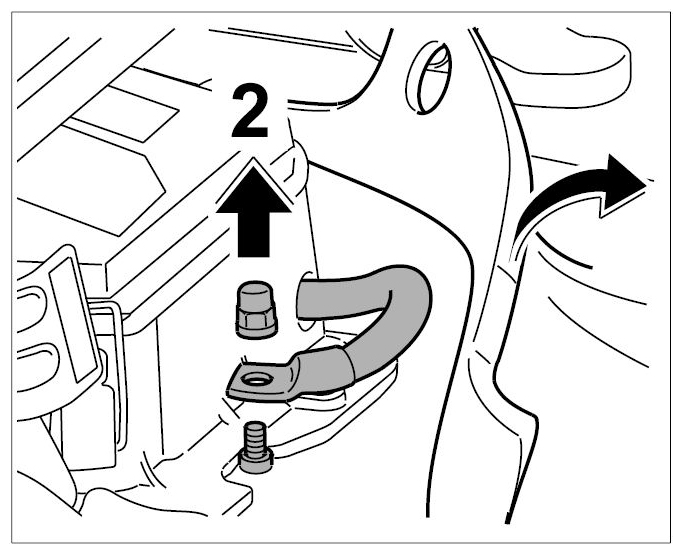

Fold up carpeting and unscrew fastening nuts -arrow 2- from battery ground strap on the body.

Fig 3: Loosening Battery Ground Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route or isolate ground strap so that all contact with a ground carrier (e.g. body, seat frame) is avoided.
Information
- Only for vehicles with auxiliary battery

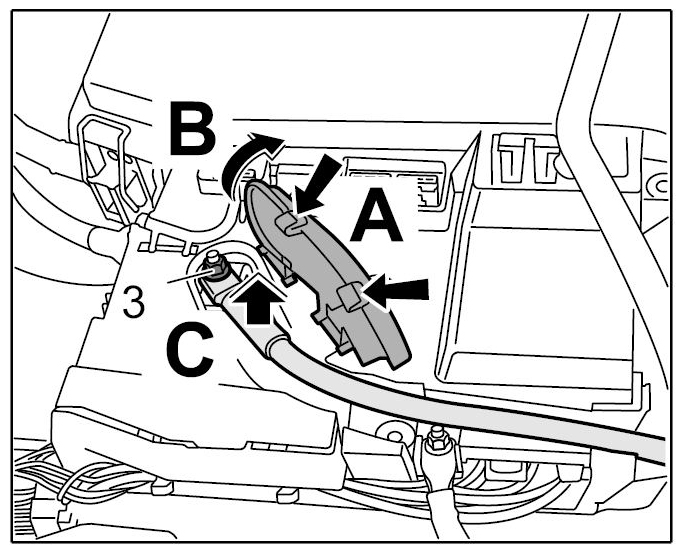

Release the cover -arrows A- and open it -arrow B- .

Fig 4: Folding Up Cover And Removing Line For Auxiliary Battery
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off the fastening nut -3- and remove the lead for the auxiliary battery -arrow C- .
Lever off cover from power distributor using a screwdriver -a- .

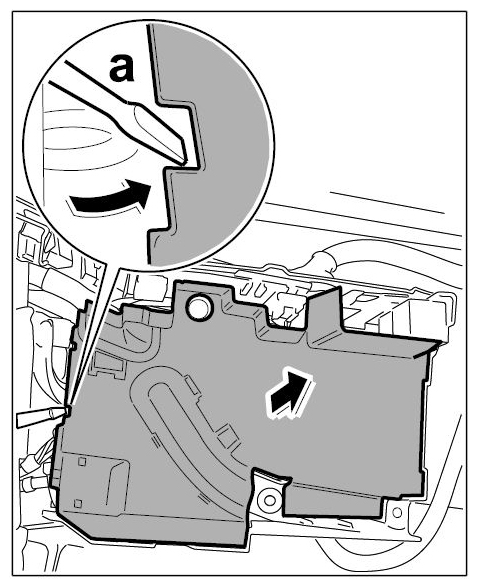

Fig 5: Levering Off Lid From Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the two hexagon nuts -4- from the blown fuse element and remove the fuse element.

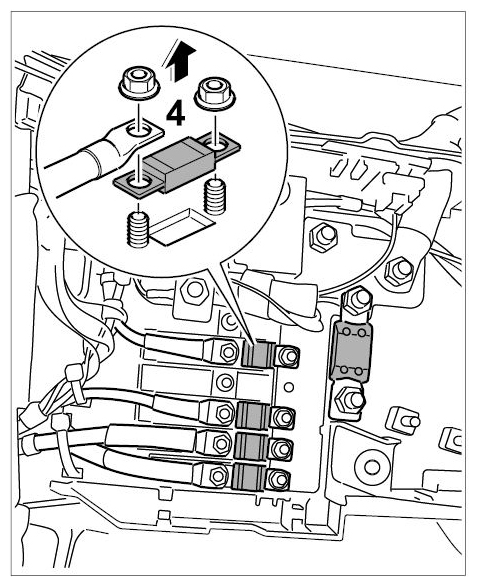

Fig 6: Loosening Hexagon Nuts On Fuse Element
