Installing Support For DME Control Module

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position support for DME control module and screw down both fastening nuts -3-  and the fastening screw -2-  . → Tightening torque: 6 ftlb.  → Tightening torque: 6 ftlb.

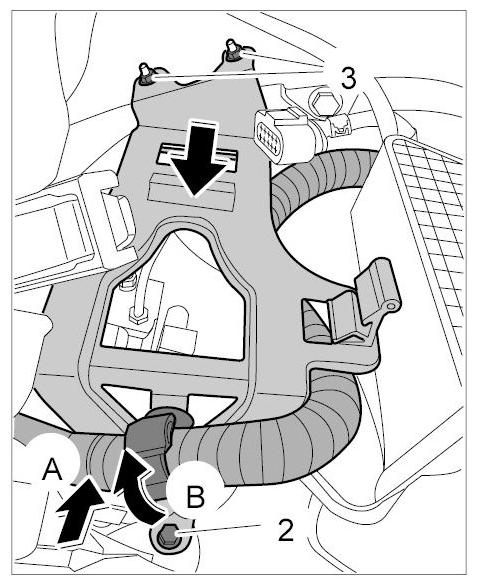

    Fig 1: Installing Support For DME Control Module
    G09416034Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert DME control module in the retaining clips -arrow A-  and close the retaining clips -arrow B-  .
  3. Mount ground straps together with the twist lock on the stud and screw down with the fastening nut -1-  . → Tightening torque: 6.5 ftlb  .

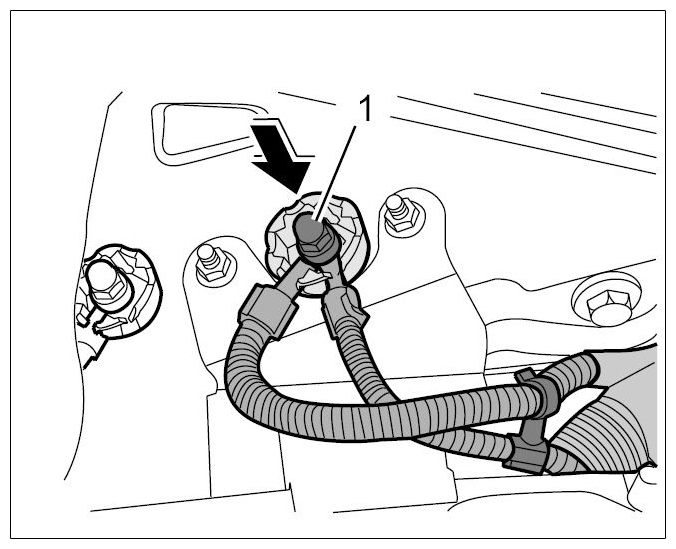

    Fig 2: Fastening Ground Straps
    G09416035Courtesy of PORSCHE CARS NORTH AMERICA, INC.
