Removing Fluid Level Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

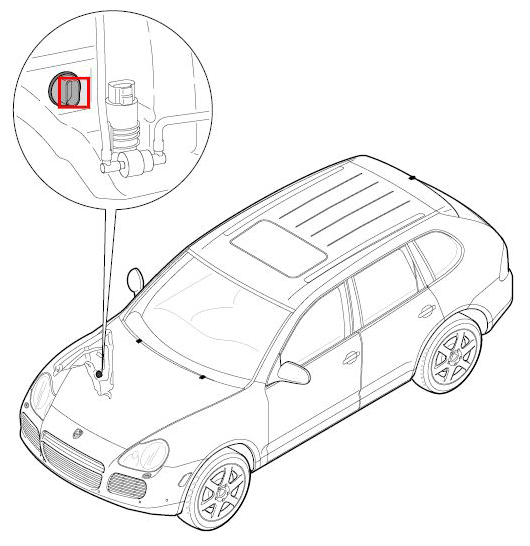

Fig 1: Overview Of Fluid Level Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release -arrow A- and pull off -arrow B- plug.

Fig 2: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lever sensor out of rubber seal -arrow B- . Collect any emerging fluid with a suitable container.

Fig 3: Levering Out Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

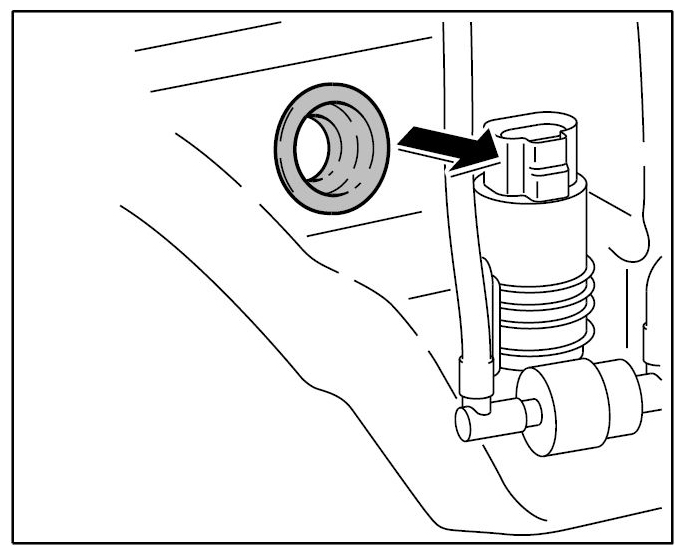

Remove rubber seal -arrow- .

Fig 4: Removing Rubber Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
