Installing Fluid Level Indicator

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

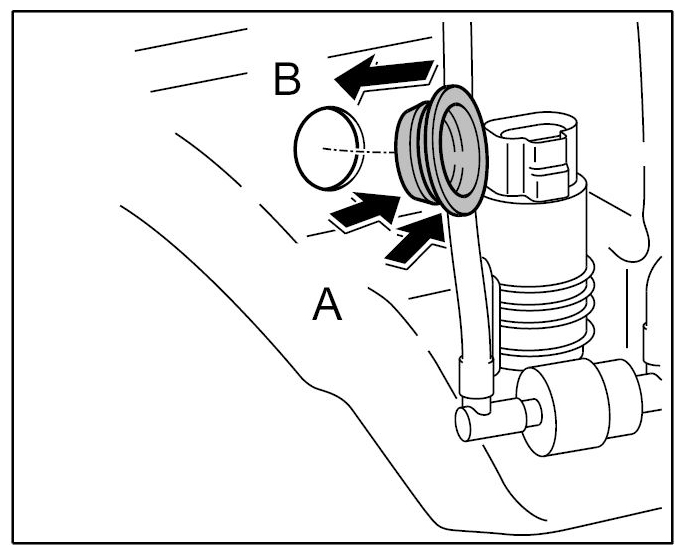

  1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing surface -arrows A-  and press rubber seal into tank -arrow B-  until it is felt to engage.
    Fig 1: Fitting Rubber Seal
    G09415246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

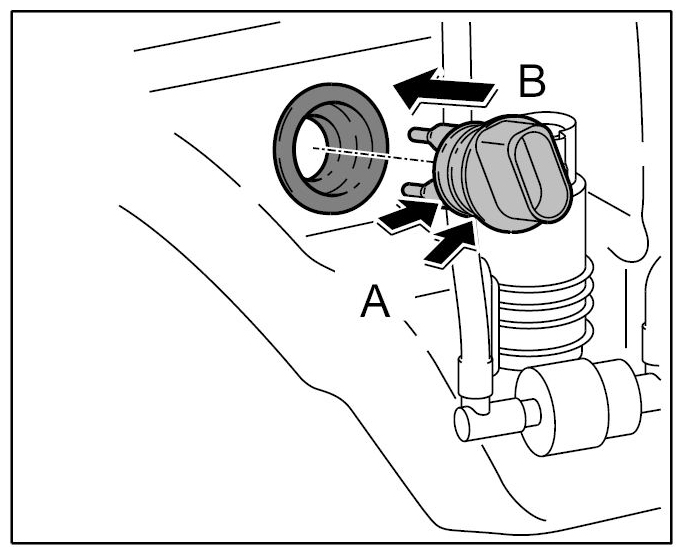

  2. Apply a suitable rubber lubricant (tyre mounting paste) to sealing surface -arrows A-  and press sensor into rubber seal -arrow B-  until it is felt to engage.
    Fig 2: Installing Sensor
    G09415247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

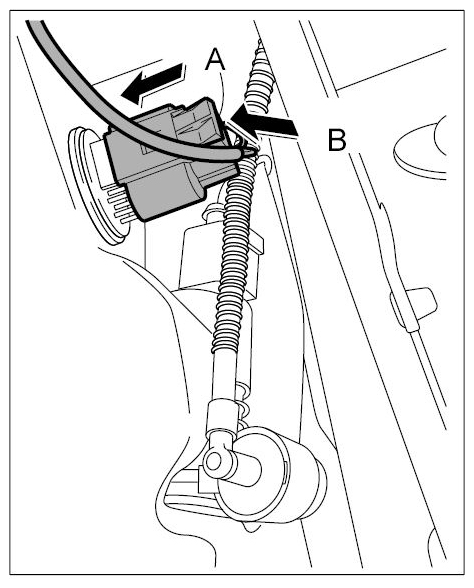

  3. Connect plug to sensor -arrow A-  until the lock -arrow B-  is felt to engage.
    Fig 3: Plugging In Connector
    G09415248Courtesy of PORSCHE CARS NORTH AMERICA, INC.
