Overview Of Front Air-Spring Strut

Information

The components of the air spring -7-  (figure shows component arrangement of front air-spring strut), Items -2, 3, 4, 5-  (figure shows front air-spring strut), cannot be disassembled.

• Always replace the complete air spring -7- (figure shows component arrangement of front air-spring strut)!

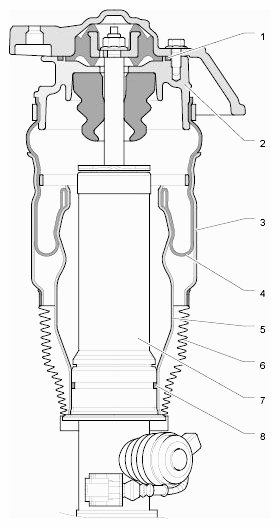

Fig 1: Identifying Front Air-Spring Strut Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Sealing ring
2. Lid
3. Outer guide
4. Rolling boot
5. Rolling piston
6. Bellows
7. Shock absorber
8. Sealing ring

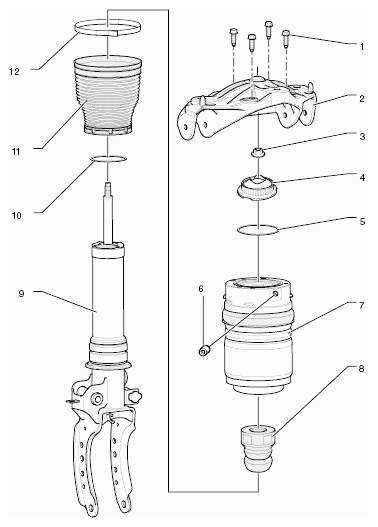

   Fig 2: Identifying Component Arrangement Of Front Air-Spring Strut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Hexagon-head bolt
2. Mounting saddle
3. Hexagon nut
4. Spring-strut mount
5. Sealing ring
6. Residual pressure retaining valve
7. Air spring
8. Rubber stop
9. Shock absorber
10. Sealing ring
11. Boot/bellows
12. Clamp
