Removing Rear Level Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

In running gear with level adjustment, a level sensor is installed on each spring strut.
The level sensor is screwed to the suspension sub-frame and lower control arm.
Make sure that the level sensor is fitted with the swivel range of the lever towards the outside of the vehicle.

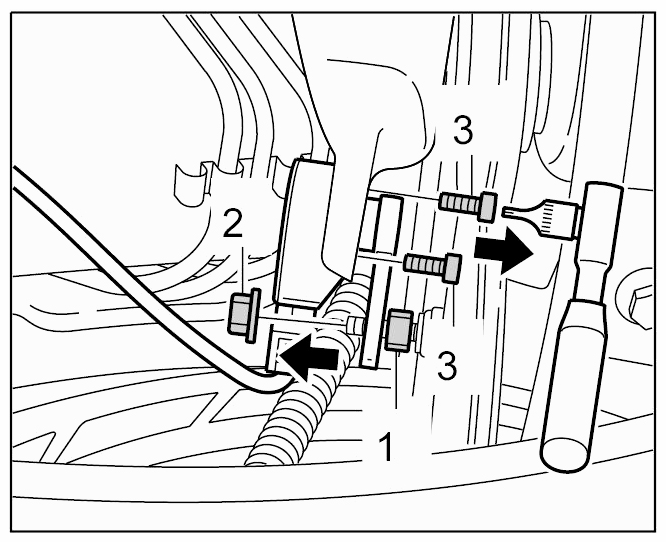

Counter with an open-ended wrench on the two flats -1- and unscrew the fastening nuts.

Fig 1: Removing Rear Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew both fastening screws -2- .

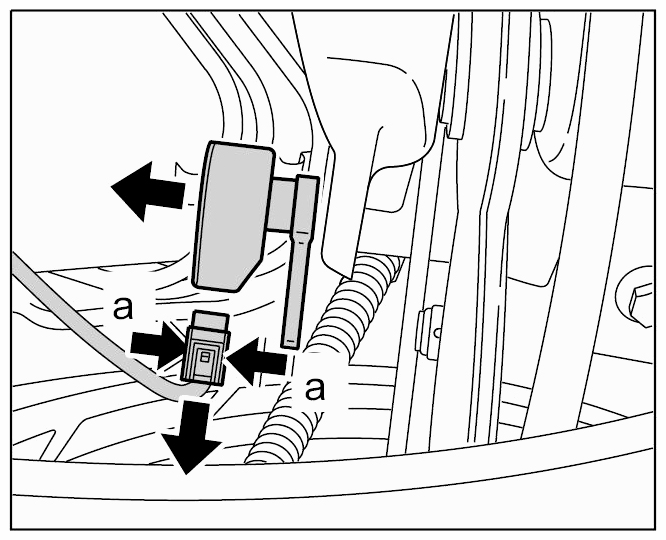

Press the electric connector together -a- and pull it off.

Fig 2: Pressing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
