Removing Control Unit For Porsche Dynamic Chassis Control (PDCC)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

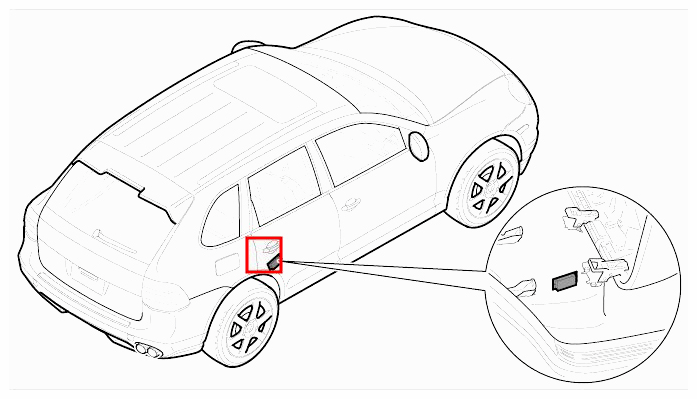

Fig 1: Identifying Installation Position Of Control Unit For Porsche Dynamic Chassis Control

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.
Fold the right rear seat forward.

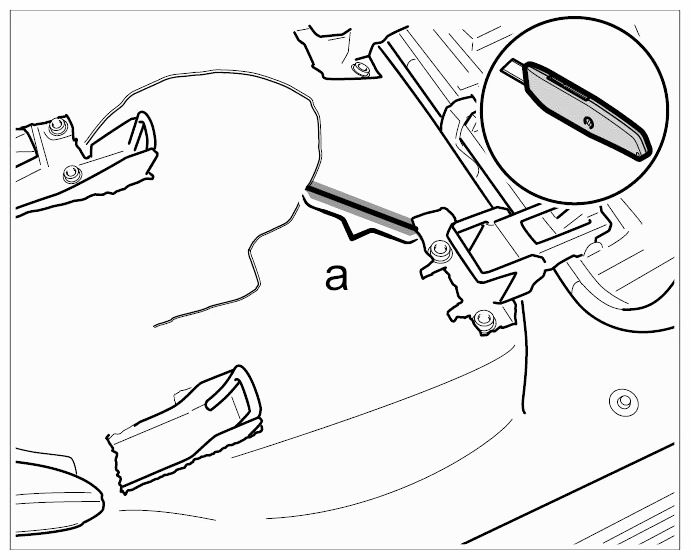

Cut through carpeted floor in -area a- with a carpet knife and fold it over to one side.

Fig 2: Identifying Cutting Carpeted Floor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

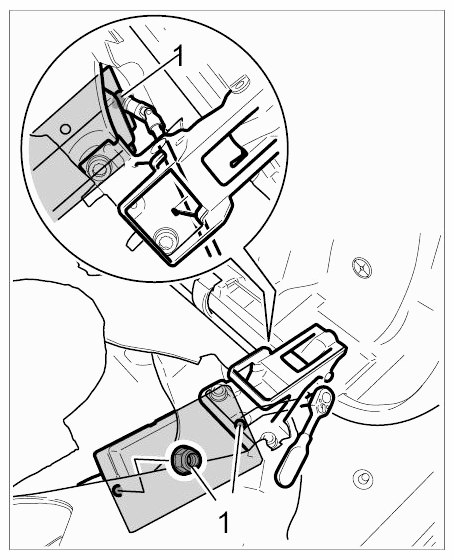

Screw off fastening nuts -1- on the PDCC control unit.

Fig 3: Identifying Fastening Nuts On Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

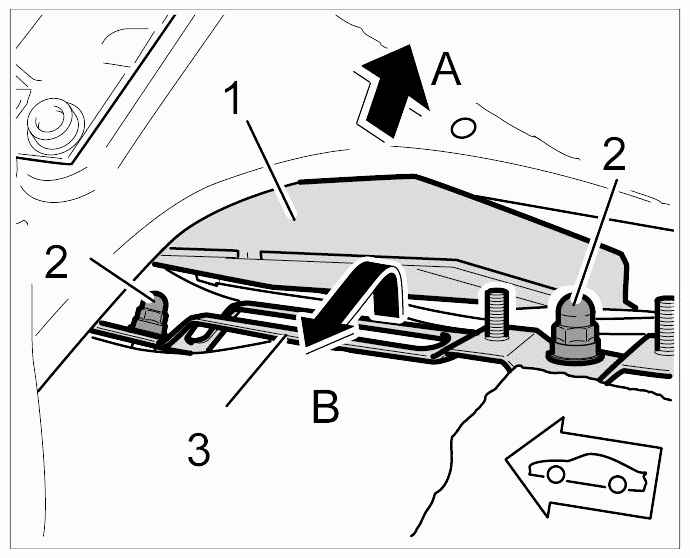

Remove PDCC control unit holder.
1. 5.1. Remove PDCC control unit -1- from the studs and press it to one side -arrow A-
2. 5.2. Screw off fastening nuts -2- on holder -3- and remove PDCC control unit holder -arrow B- .

  Fig 4: Removing PDCC Control Unit Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

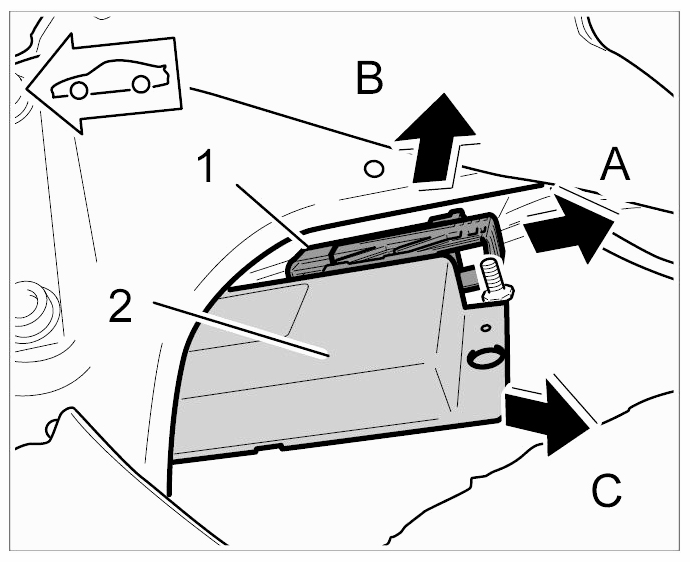

Remove PDCC control unit.
1. 6.1. Release connector -1- (-arrow A- ) and pull it off the PDCC control unit -2- (-arrow B- ).
2. 6.2. Remove PDCC control unit -2- (-arrow C- ).

  Fig 5: Removing PDCC Control Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
