WM 282020 Removing And Installing Bar Ignition Modules (Cayenne)
>>
Subsequent Work
Subsequent Work
Reconnect the bar ignition modules. The connectors must lock with an audible click.
-arrow-

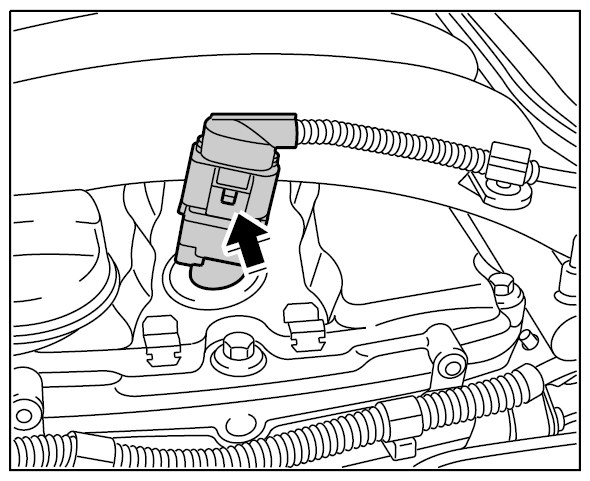

Fig 1: Connecting Bar Ignition Modules
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
