Installing Bar Ignition Modules

  1. Install the plug coils. When doing so, make sure that the smooth surface is pointing upwards. An audible click indicates that they are installed correctly.

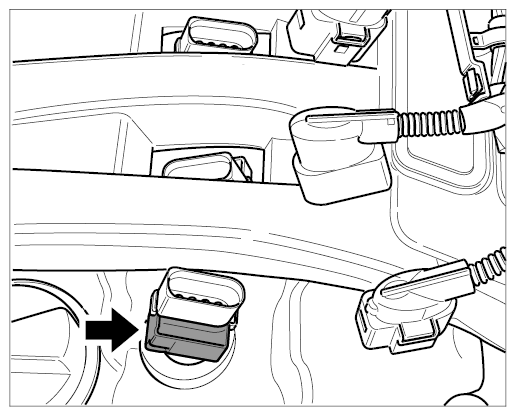

    Fig 1: Installing Plug Coils
    G09934213Courtesy of PORSCHE CARS NORTH AMERICA, INC.
