Mounting Roll-Over Bar On Assembly Fixture

→ Set the component down on a clean surface, workbench or assembly fixture.

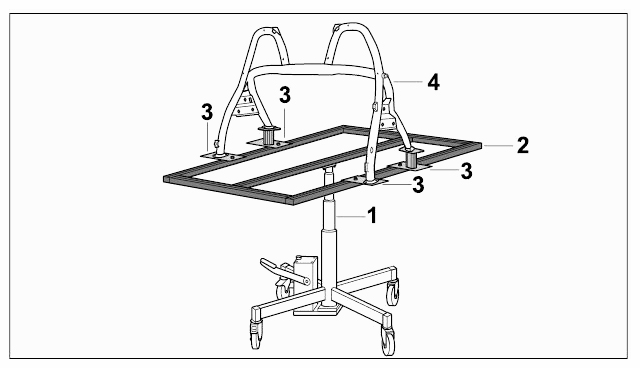

Fig 1: Overview Of Mounting Roll-Over Bar On Assembly Fixture

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Transmission jack
2. Retaining frame
3. Holder for roll-over bar
4. Roll-over bar

1. Get the assembly fixture ready.
   1. 1.1. Insert retaining frame -2-  into the transmission jack -1-  .
   2. 1.2. Secure holder -3-  on the retaining frame -2-  at the positions shown using fastening screws and inlay nuts.
   3. 1.3. Align holder -3-  on retaining frame -2-  with → Dimension A:

      600 mm  and the → Dimension B: 315 mm+/-5 mm  .

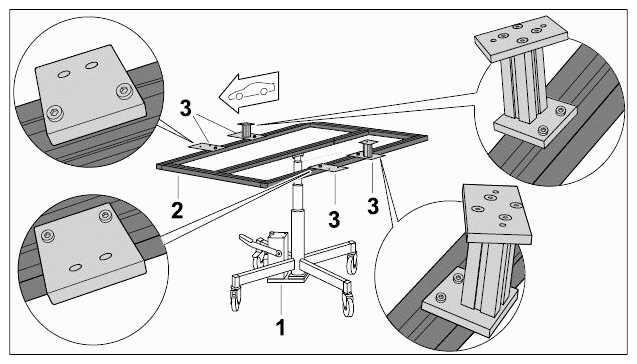

      Fig 2: Securing Holder On Retaining Frame

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

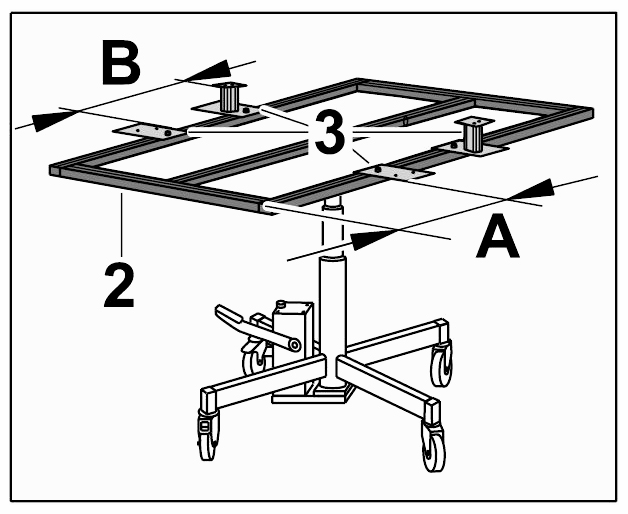

      Fig 3: Aligning Holder On Retaining Frame

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Secure roll-over bar to the assembly fixture.
   1. 2.1. Position roll-over bar -4-  on the holders -3-  and secure with fastening screws -5-  (M8 x 30).

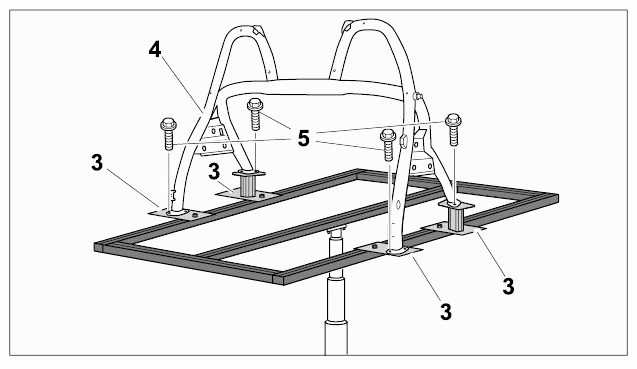

      Fig 4: Securing Roll-Over Bar To Assembly Fixture

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
