Installing Ignition Switch

  1. Connect plug on ignition switch until it clicks into place.

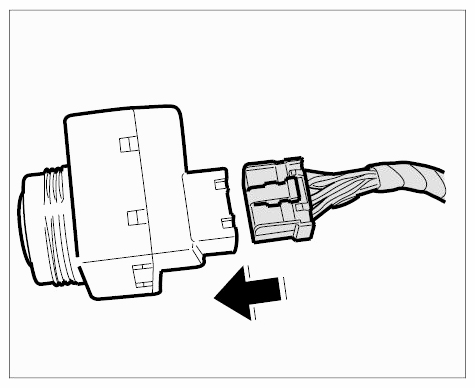

    Fig 1: Connecting Electric Plug
    G09586428Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position ignition switch in the switch panel from below. Position union nut, re-adjust switch and tighten union nut using wrench T10152.  → Tightening torque: 1.6 Nm

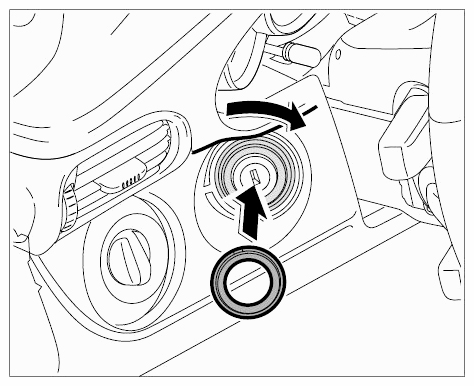

    Fig 2: Turning Ignition Switch Union Nut
    G09586429Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Place cover in position and slide it over the ignition switch, paying attention to the fitted shape.
