Removing Pneumatic Spring For Rear Window

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

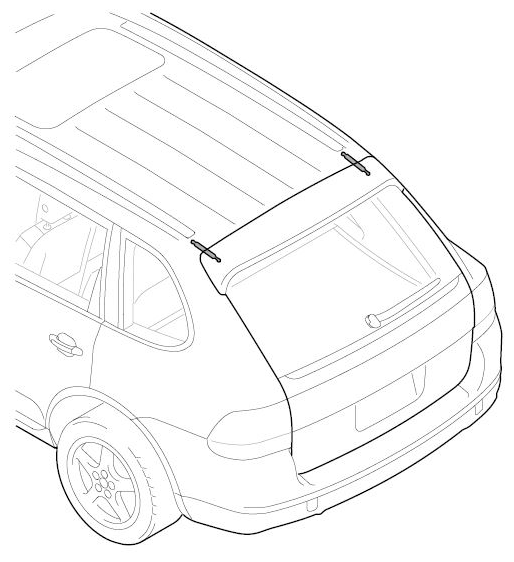

Fig 1: Identifying Rear Lid And Rear Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Open rear lid and rear window.
2. Unscrew fastening screws -2-  .

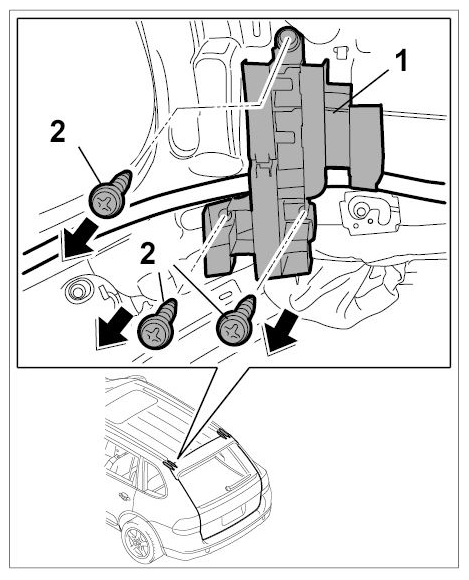

   Fig 2: Unscrew Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unclip and remove the deformation element -1-  .
   Fig 3: Removing Deformation Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • A new lid must be used during installation.
4. Pull cover -3-  off in a downward direction and remove it (-arrows A-  ).

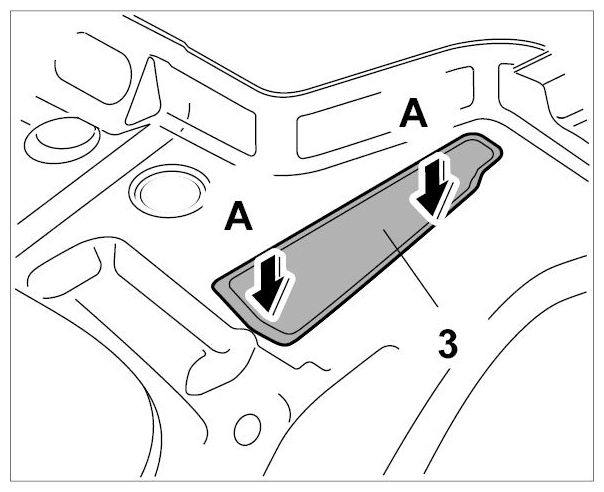

   Fig 4: Removing Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove the remaining sealing material on the body.
6. Secure rear window against accidental closure.
7. Loosen safety clips of pneumatic springs for rear window -4-  at ball sockets using a screwdriver and remove the clips.

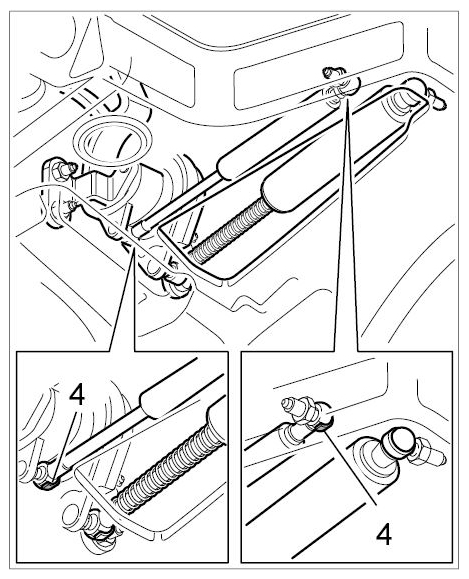

   Fig 5: Loosening Safety Clips Of Pneumatic Springs For Rear Window Ball Sockets Using Screwdriver

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Pull the pneumatic springs for the rear window -4-  from the ball heads and remove.

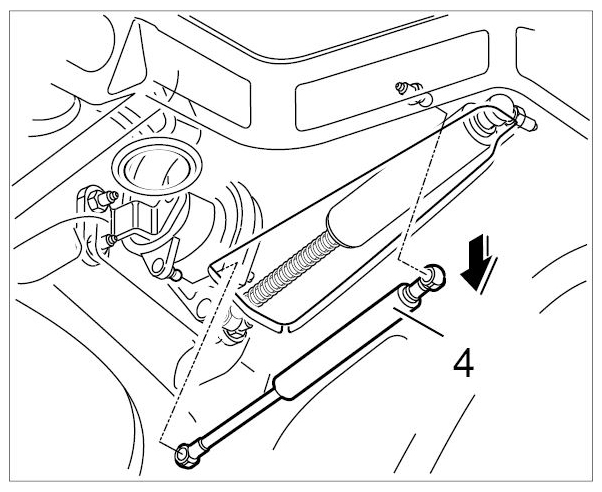

   Fig 6: Pulling Pneumatic Springs For Rear Window From Ball Heads

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
