Removing Rear Belt Lock

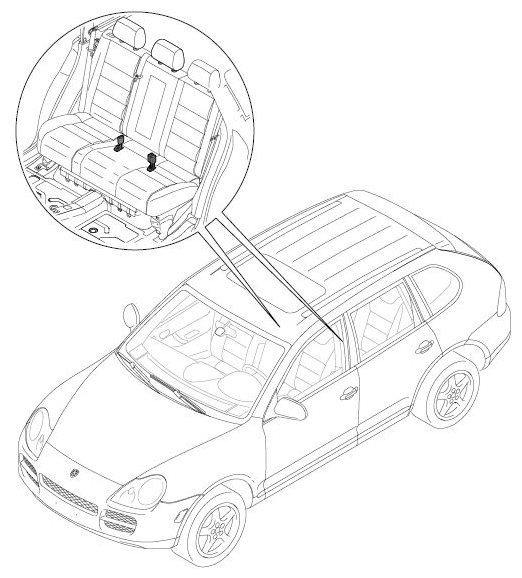

Fig 1: Identifying Rear Belt Lock
G09412820Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Lift front edge of right back seat -arrow A-  , pull out to the front -arrow B-  , and fold forward -arrow C-  .

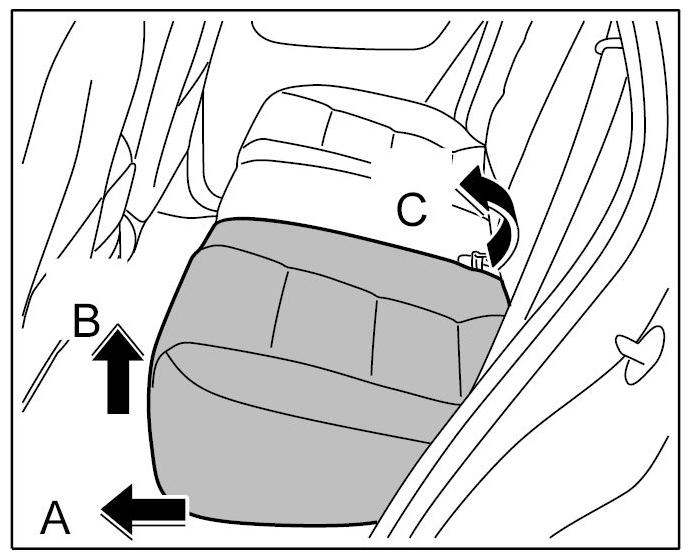

    Fig 2: Lifting Up Front Edge Of Right Back Seat
    G09412821Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew front fastening nut -1-  .
    Fig 3: Removing Belt Buckle Front Fastening Nut
    G09412822Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fold belt buckle forward -arrow-  .
    Fig 4: Removing Belt Buckle Front Fastening Nut
    G09412823Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew rear fastening nut -2-  .

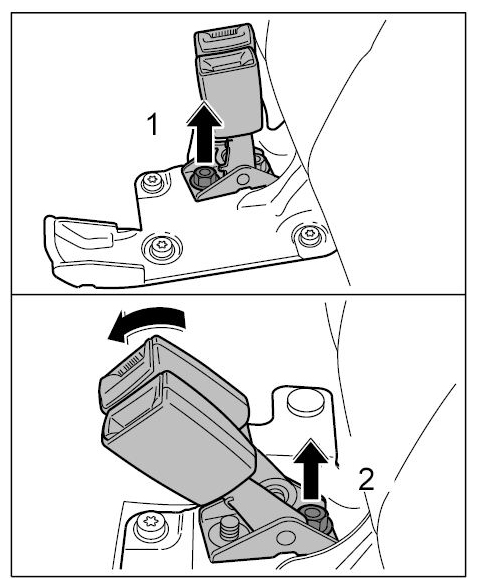

    Fig 5: Removing Belt Buckle Rear Fastening Nut
    G09412824Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove belt buckle.
