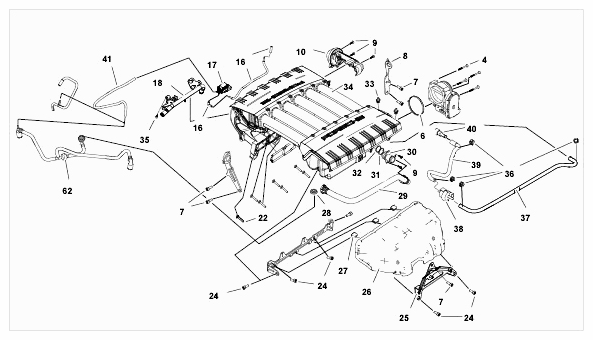

Component Overview
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 4 - Screw → Tightening torque: 7 Nm (5.0 ftlb.)
- 6 - Sealing ring; check and replace if damaged
- 7 - Screw → Tightening torque: 23 Nm (17 ftlb.)
- 8 - Transport eyebolt on exhaust side
- 9 - Screw
- 10 - Shift mechanism on variable intake manifold (intake-air distributor)
- 16 - Vacuum line
- 17 - Change-over valve
- 18 - Coolant pipe
- 22 - Screw → Tightening torque: 8 Nm (6.0 ftlb.)
- 24 - Screw → Tightening torque: 20 Nm (15 ftlb.)
- 25 - Support
- 26 - Heat protection panel (cover plate)
- 27 - Clamp
- 28 - Plug (vacuum)
- 29 - Positive crankcase ventilation
- 30 - Heat socket
- 31 - Sealing ring
- 32 - Sealing ring
- 33 - Locking pin

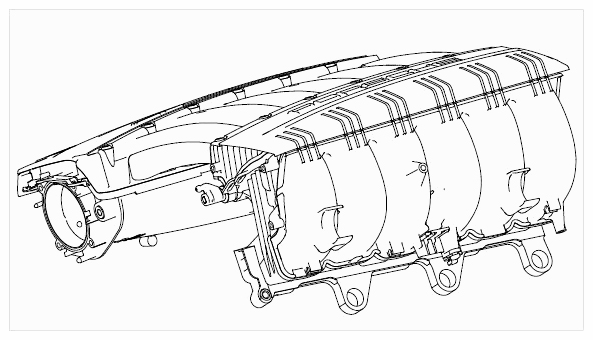

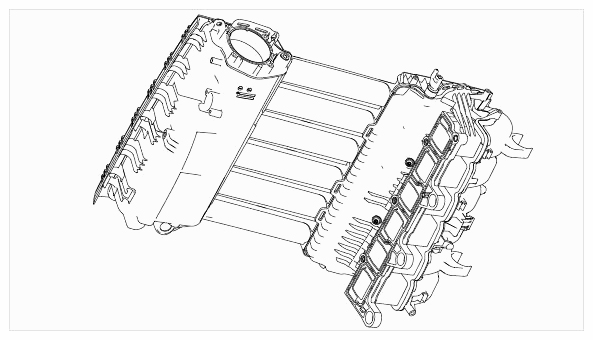

- 34 - Intake-air distributor (intake module)
- 35 - Coolant pipe screw
- 36 - Spring band clamp
- 37 - Tank ventilation (active carbon filter) hose
- 38 - Tank ventilation (active carbon filter) valve
- 39 - Tank ventilation (active carbon filter) hose
- 40 - Rapid-action coupling
- 41 - Vacuum line
- 62 - Brake booster vacuum line
