Installing dashboard insert

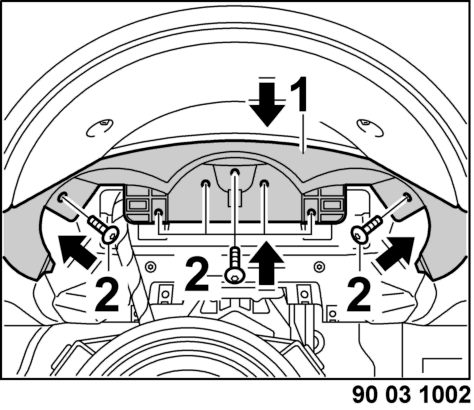

Fig 1: Tightening fastening screws
GP00017454Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Position dashboard insert -1-  on the dashboard and screw into place with the seven fastening screws -2-  . → Tightening torque: 2.0 ftlb.  See Fig 1.
