DTC P1141: Throttle Position Sensor 2-Below Limit: Diagnosis/Troubleshooting

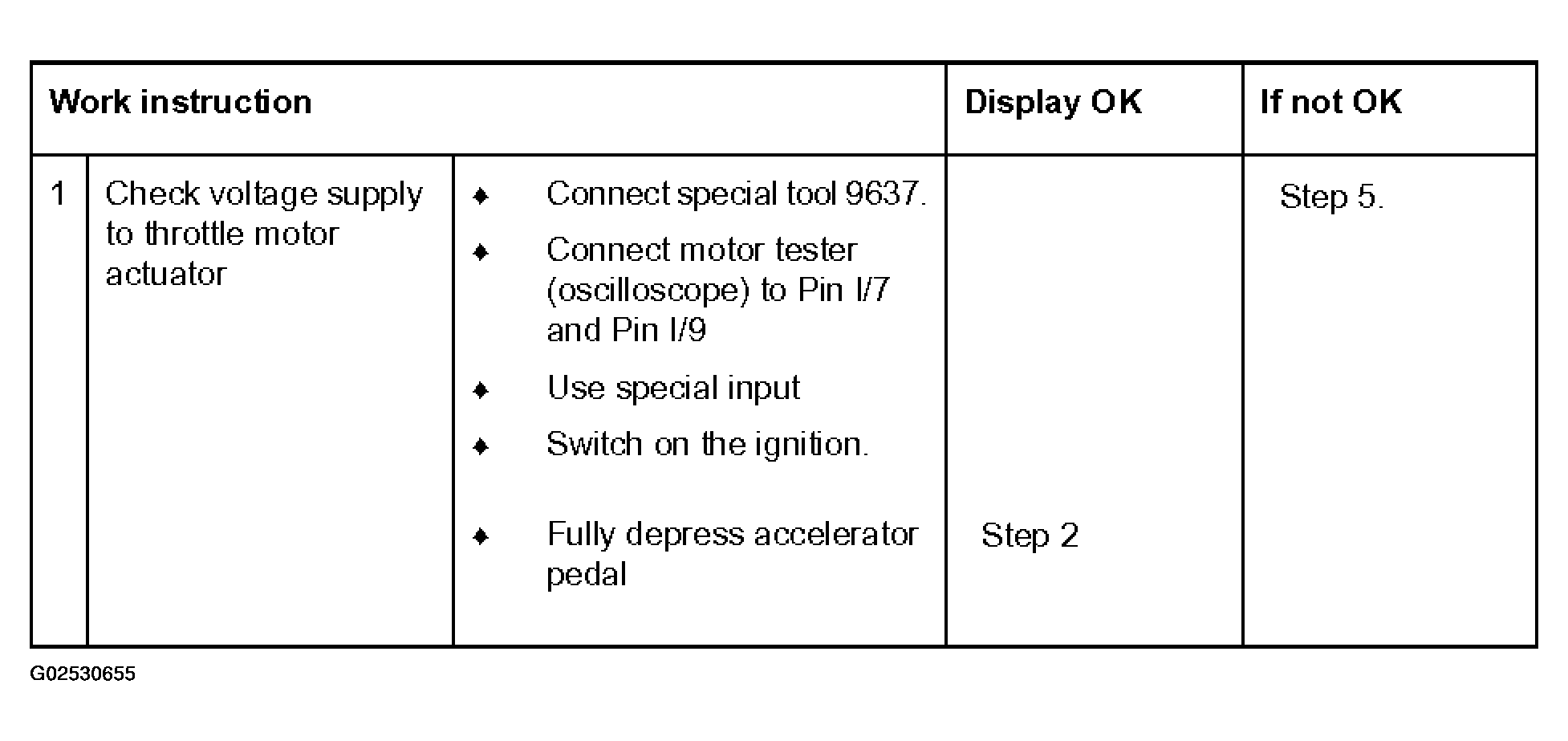

Fig 1: P1141 Work Instruction (Step 1)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

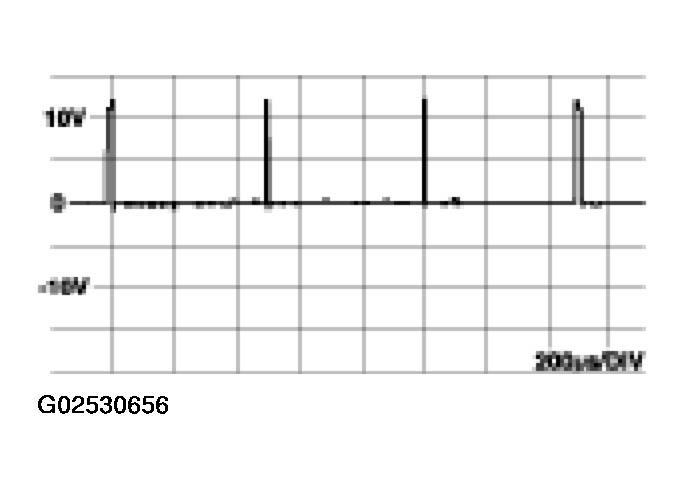

Fig 2: Throttle Position Sensor Oscilloscope Pattern (Closed Throttle)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

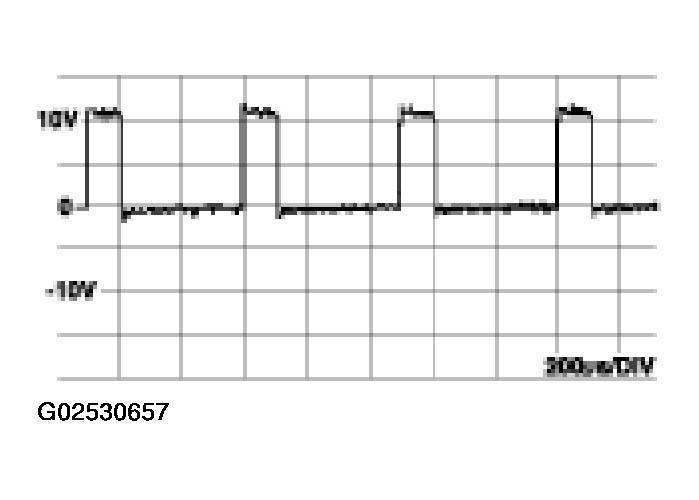

Fig 3: Throttle Position Sensor Oscilloscope Pattern (Wide Open Throttle)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

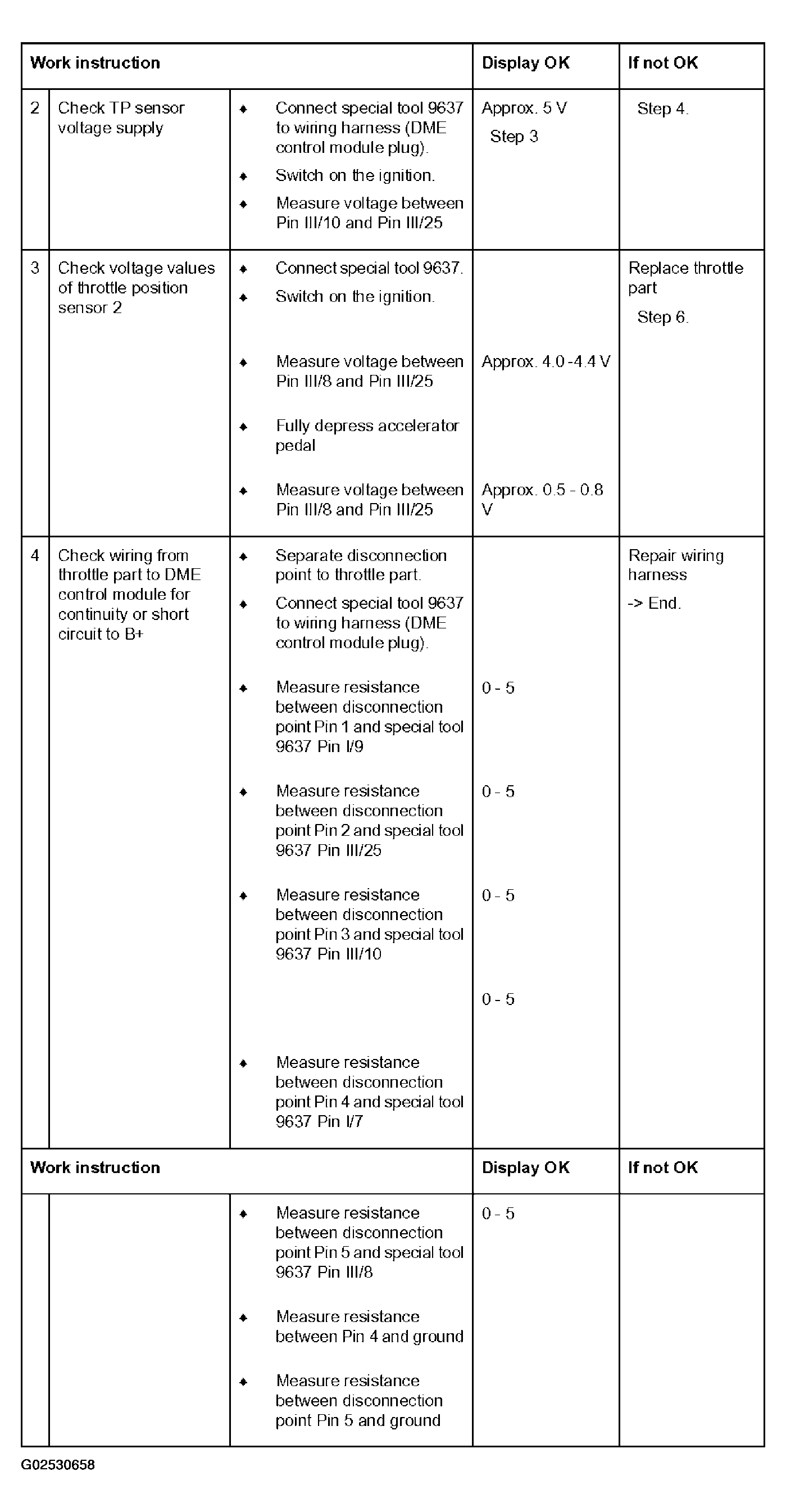

Fig 4: P1141 Work Instruction (Step 2 Through 4)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Disconnection point throttle part: see Fig 5 .

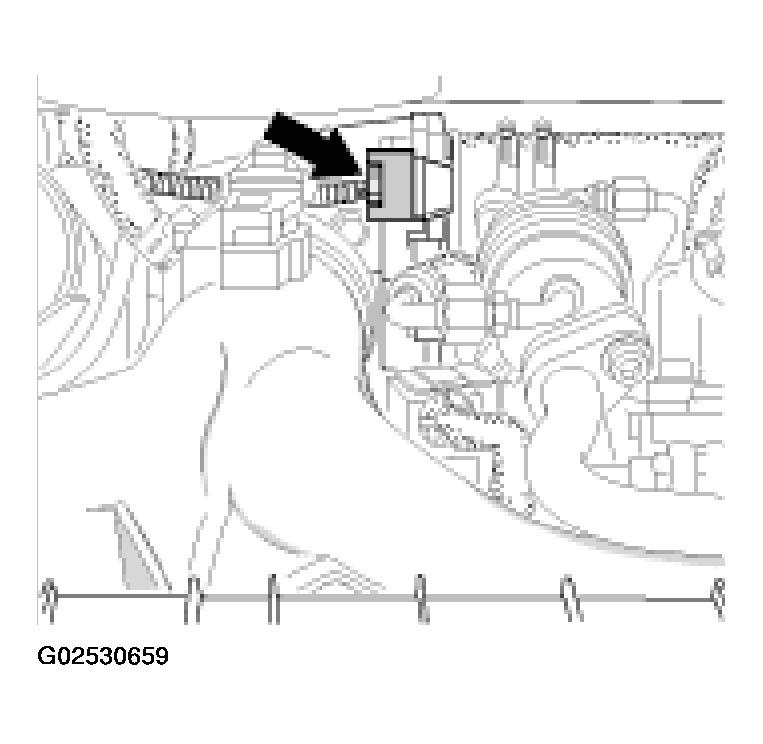

Fig 5: Locating Throttle Position Sensor Connector

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• The wires to the throttle part are routed via connector X 59/2.

Fig 6: P1141 Work Instruction (Step 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

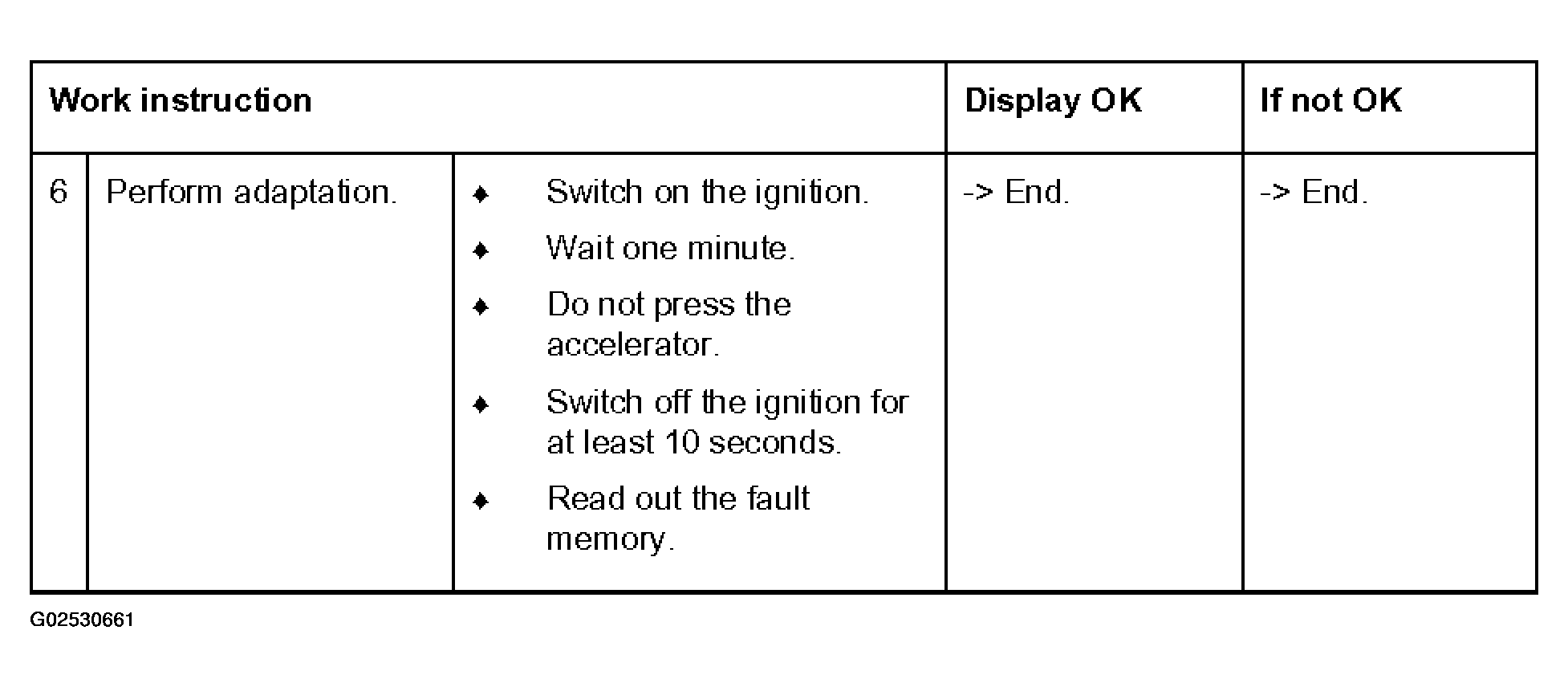

Fig 7: P1141 Work Instruction (Step 6)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
