Above limit

Diagnostic conditions

Possible cause of fault

Affected terminals

DME control module connector II, pin 7 and oxygen sensor jack, bank 1, pin 2

Diagnosisltroubleshooting

NOTE:
  • Do not use contact spray on the oxygen sensor plug connections as this may cause irreparable damage to the wiring (contamination of the oxygen sensor via the reference air channel).

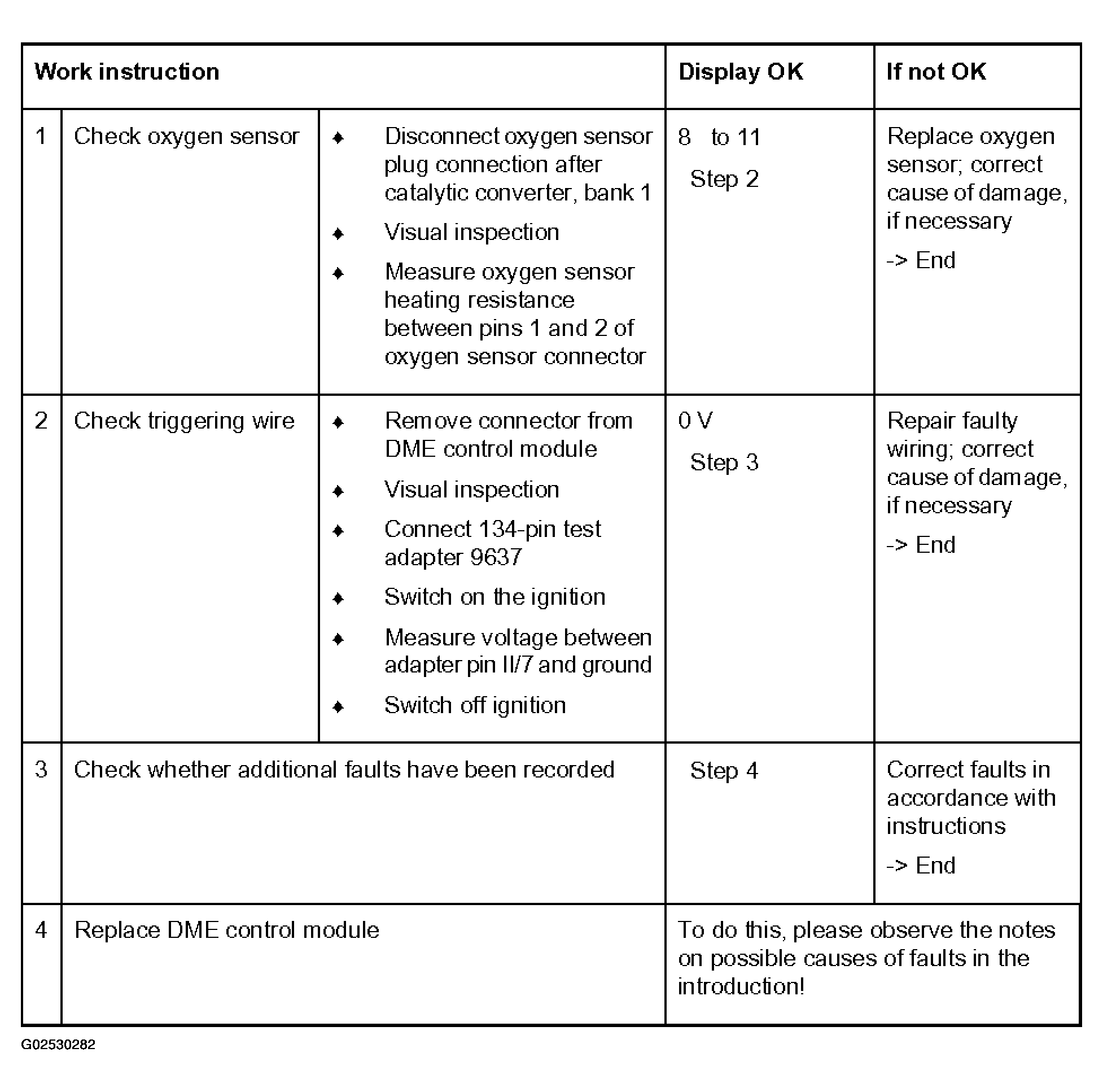

Fig 1: P0141 Work Instruction (Above Limit)
G02530282Courtesy of PORSCHE OF NORTH AMERICA, INC.
