Removing And Installing Pump For Headlight Washing System: Removal

  1. Remove tank for windscreen washer system (refer to REMOVING AND INSTALLING TANK FOR WINDSCREEN WASHER SYSTEM  ).
  2. Remove hose to the spray nozzles at the tank and turn the pump outlet to the rear.
  3. Remove spacer between the pumps and lift pump out of the rubber sleeve.

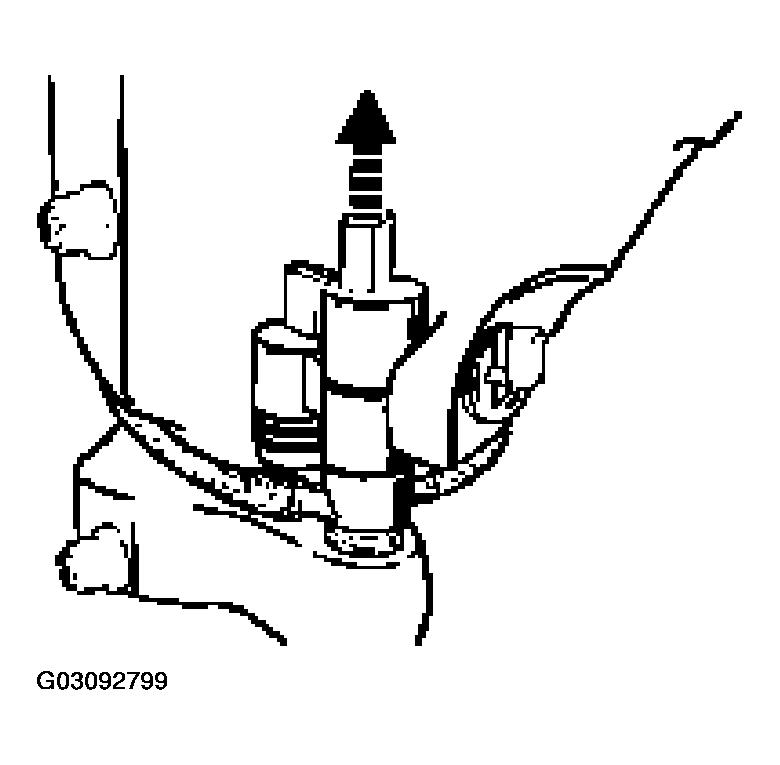

    Fig 1: Removing Spacer Between Headlight Washer Pumps
    G03092799Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull hose off the pump.
NOTE: A stuck hose can be pulled off more easily if it is heated with a hot-air gun.
