DTC P0335: Engine Speed Sensor Signal - Open Circuit: Diagnosis/Troubleshooting

Fig 1: P0335 Work Instruction (Step 1 & 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

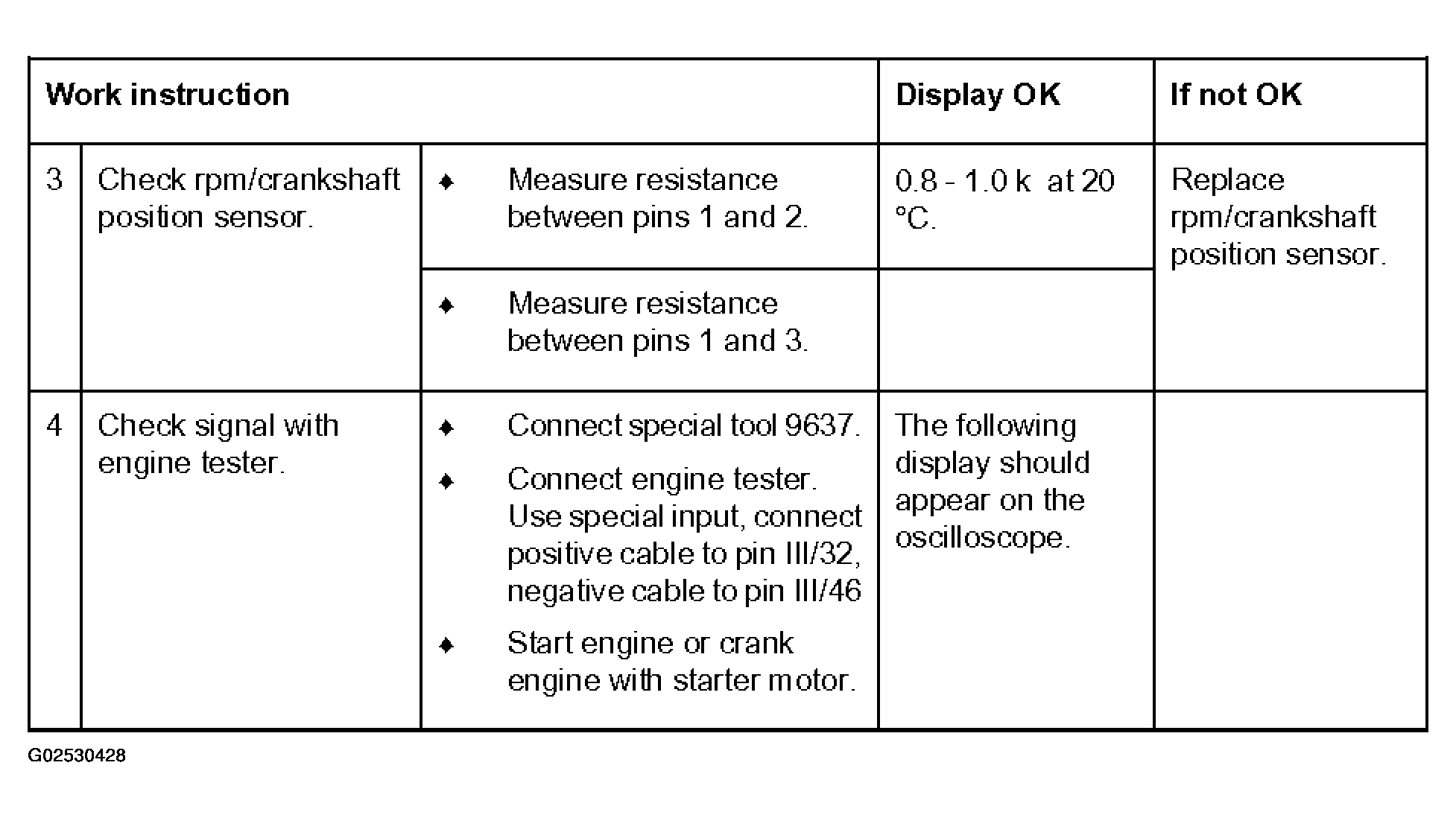

Fig 2: P0335 Work Instruction (Step 3 & 4)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

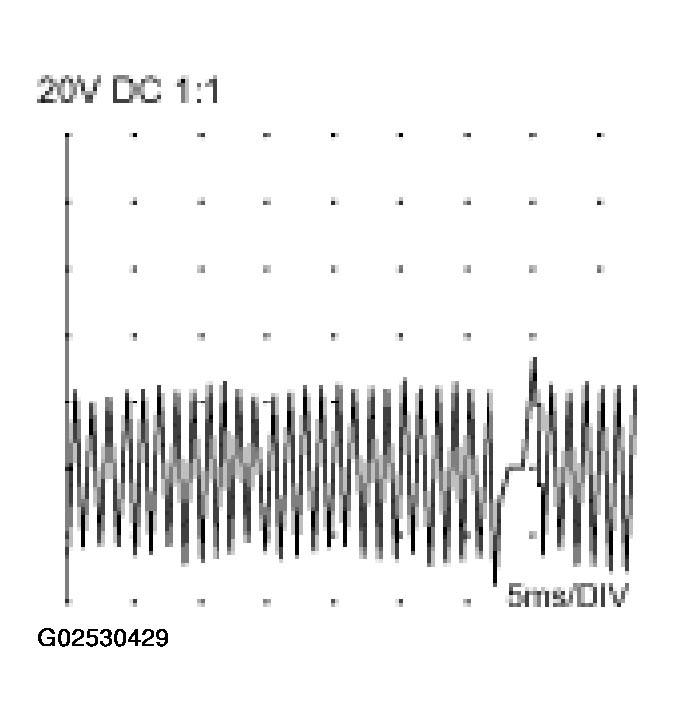

Fig 3: Engine Speed Sensor Oscilloscope Pattern

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Figure:

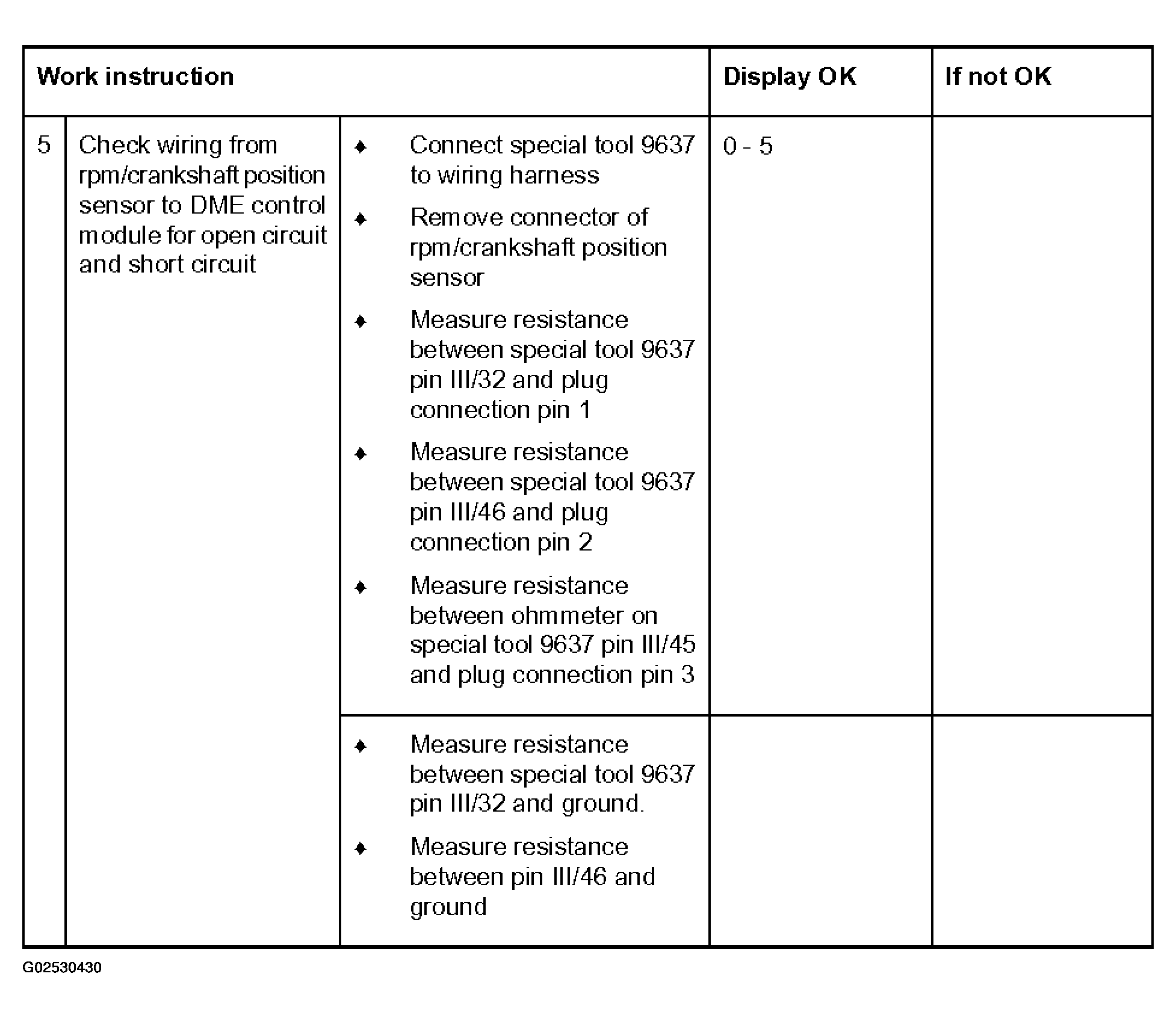

Fig 4: P0335 Work Instruction (Step 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
