Installing front three-point belt
INSTALLATION PROCEDURE FOR FRONT THREE-POINT BELT
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| Only on vehicles with belt tensioner Installing belt tensioner | See Installing belt tensioner | |||

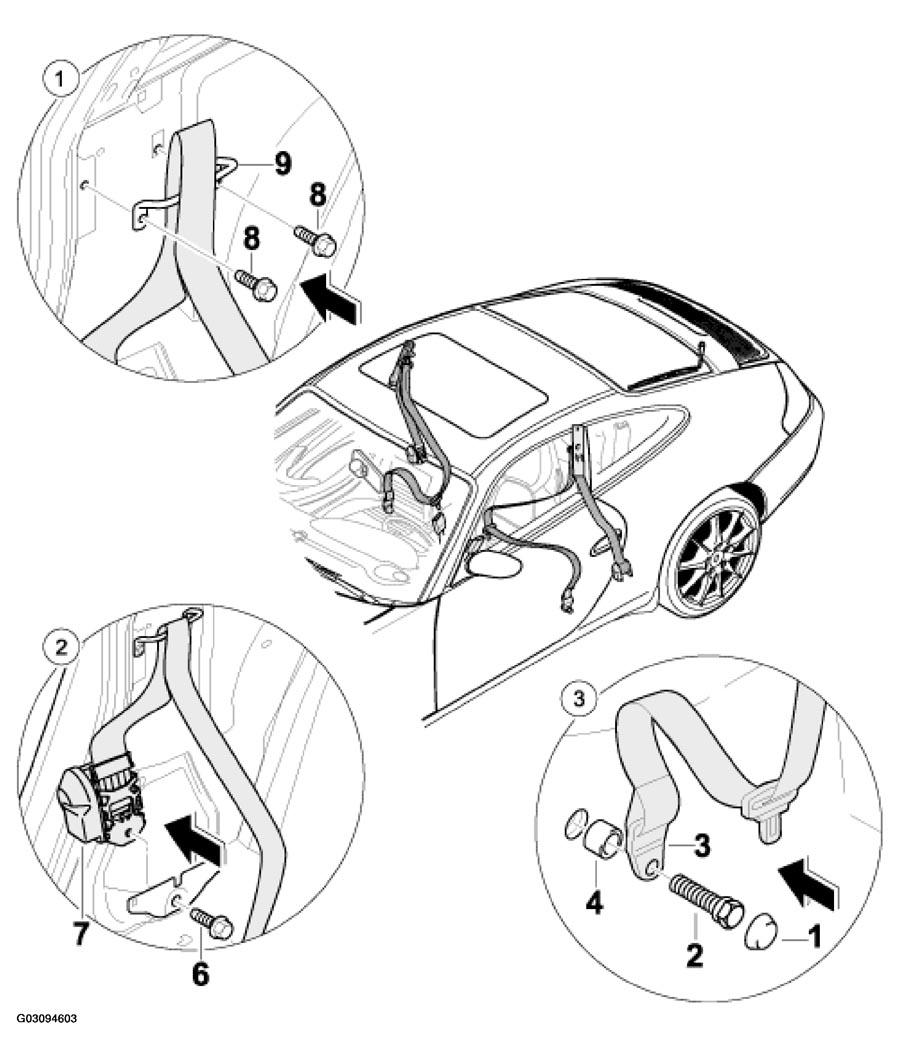

| 1(1) | Installing deflector | Position the deflector and the seat belt on the inner side section and screw tight with the fastening screws -8- (1) | ||
| 2(1) | Installing automatic belt device | Position the automatic belt device -7-arrow- (1) | ||
| 3(1) | Removing seat belt and fitting | Make sure that the belt strap can run properly! -2-3-4- (1) Screw the fastening screw -2-3-4- (1) |
||
| Removing B-pillar trim | Refer to REMOVING AND INSTALLING TRIM OF A, B AND C-PILLARS . | |||
| Removing side-panel lining | Refer to REMOVING AND INSTALLING SIDE-PANEL LINING . | |||
|
||||
