Installing Optical Contacts On Socket Side

Remove the dust boot right before plugging.
Check the proper condition of the contact.
At a force of 10 N (7.5 ft.lb) the springs installed in the joint will be pressed together. This leads to an increase in attenuation, which could lead to system impairment and system failure. Therefore, a maximum of 10 N (7.5 ft.lb) can be used to pull the LWL from the joint.

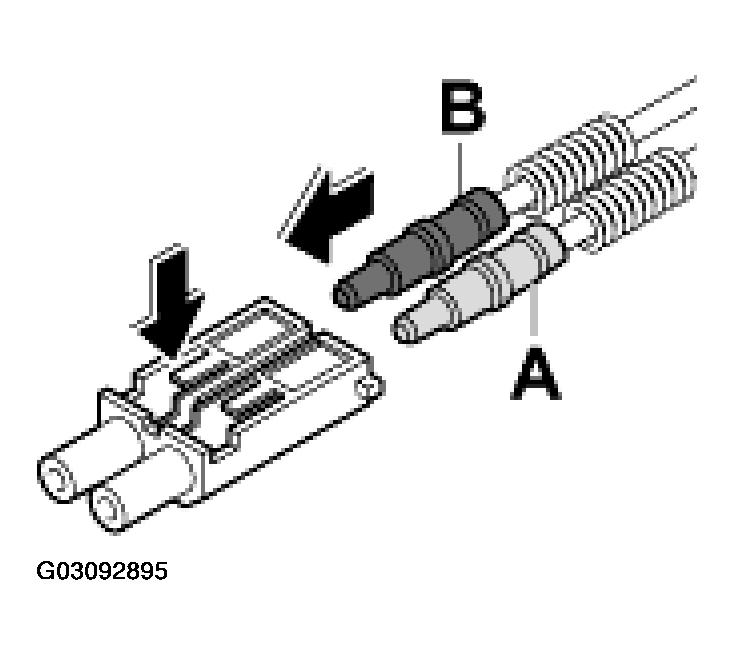

Insert the optical contacts -B- and -A- in the module until it engages audibly. See Fig 1 . Check the optical contacts for tightness.

Fig 1: Inserting Optical Contacts In Module
Courtesy of PORSCHE OF NORTH AMERICA, INC.

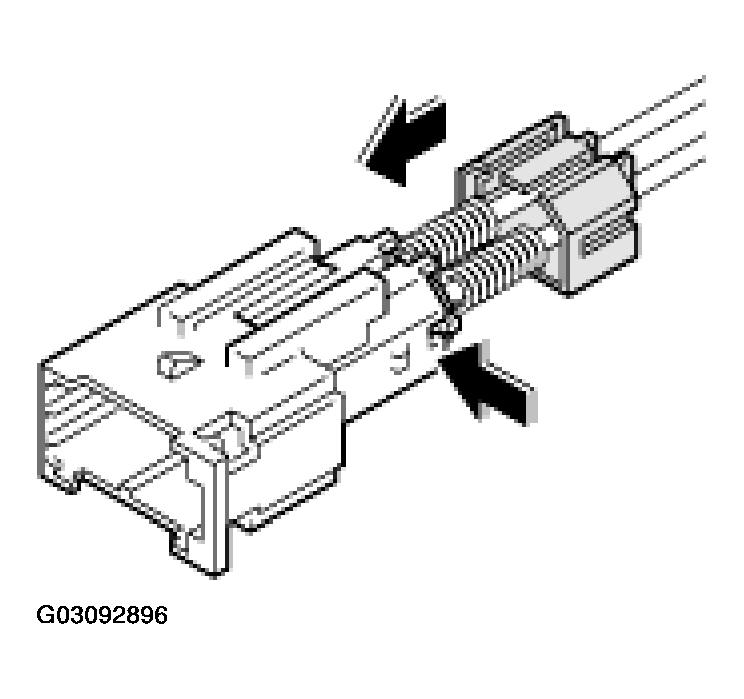

Insert the module in the joint on the socket side. See Fig 2 .

Fig 2: Inserting Module In Joint On Socket
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Slide the spring cap on the joint until it can be felt to engage -arrow- . Fig 2 .
