Installation of end muffler

The flow edge of the reinforcing plates for the muffler holder must point forwards in the direction of travel and towards the centre of the engine.

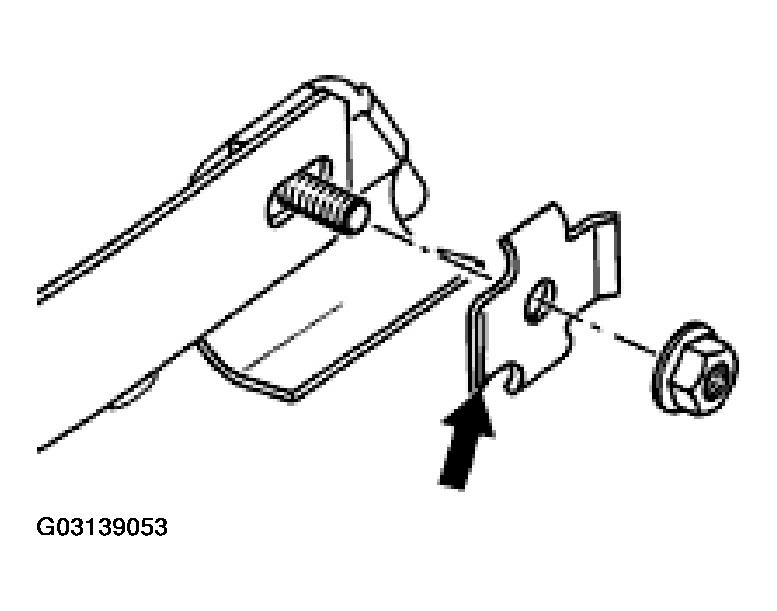

Fig 1: Identifying Reinforcing Plates Position
G03139053Courtesy of PORSCHE OF NORTH AMERICA, INC.
