Fitting vacuum control pipe on the intake distributor

Mount the vacuum control pipe between fuel pressure regulator and intake distributor at the left-hand rubber sleeve. Route the vacuum control pipe so it is tension-free.

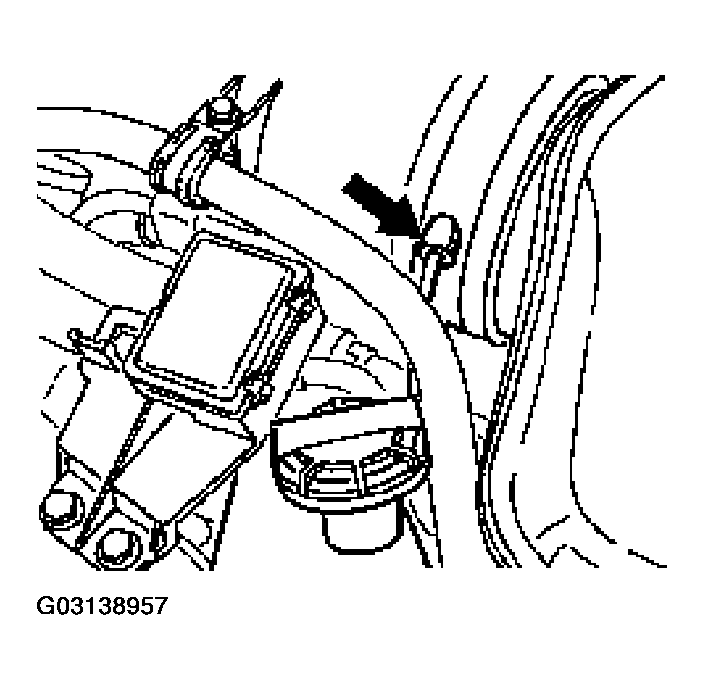

Fig 1: Fitting Vacuum Control Pipe On Intake Distributor
G03138957Courtesy of PORSCHE OF NORTH AMERICA, INC.
