Removing The Hydraulic Control Unit
- Remove ATF filter. See REMOVING AND INSTALLING ATF FILTER
.

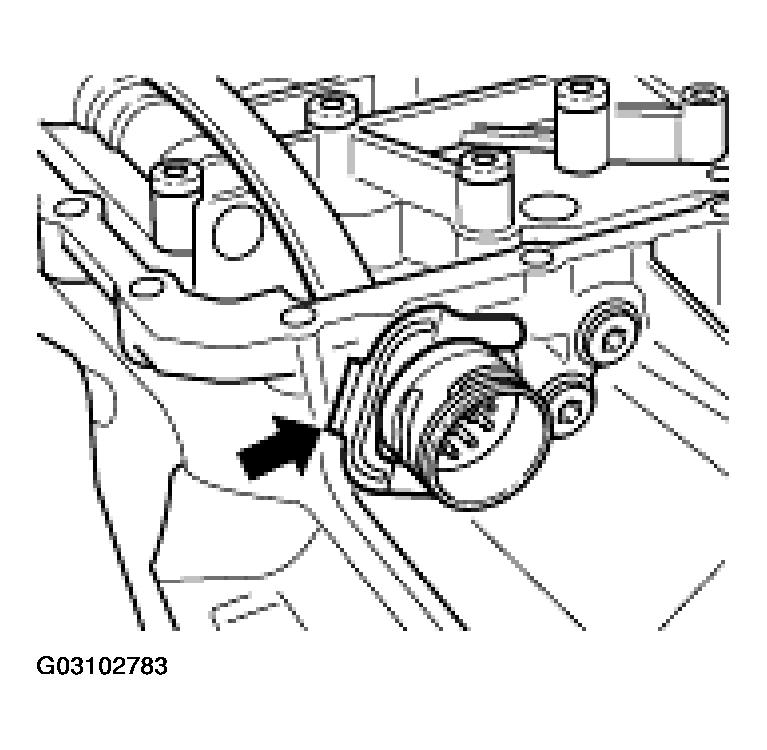

- Pull off securing clasp for wiring harness plug.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

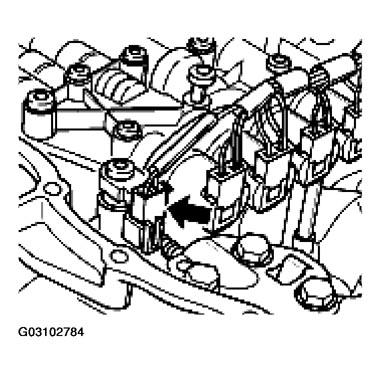

- Pull off plugs for transmission speed sensors.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

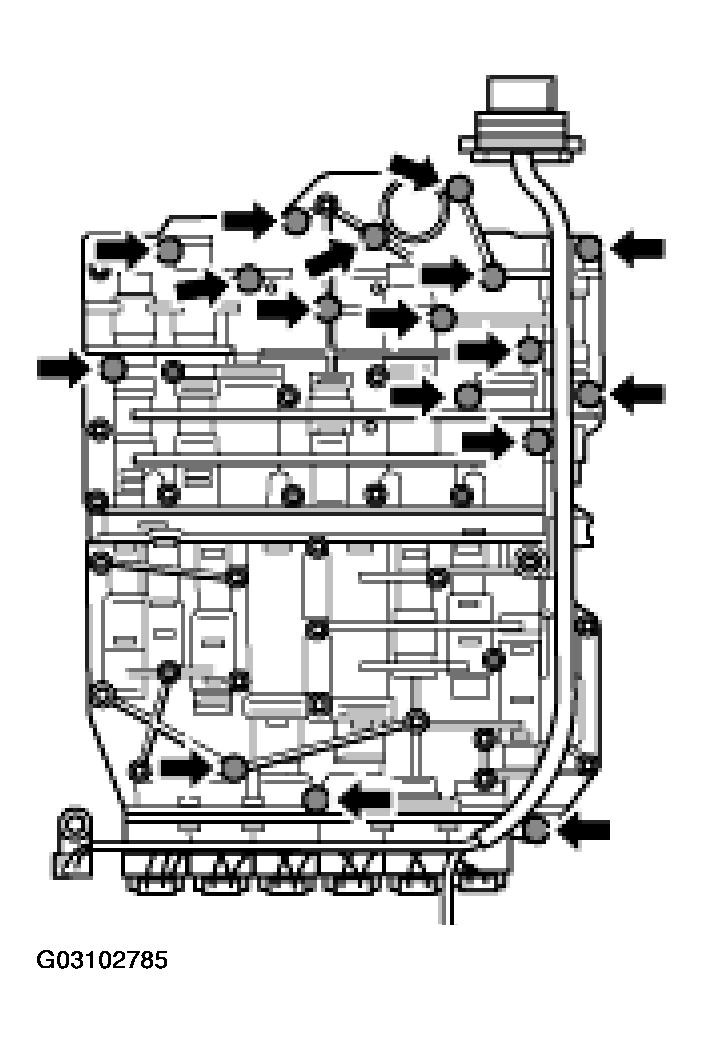

- Unscrew indicated fastening screws -arrows-
for hydraulic control unit. See Fig 3
.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Take hydraulic control unit off transmission and follow up wiring harness plug.
NOTE:
- Do not lay hydraulic control unit on the sensor for transmission input speed. This will damage the sensor.
- The hydraulic control unit can now be further disassembled, as described in the abridged instructions. Overview with abridged instructions. See OVERVIEW WITH ABRIDGED INSTRUCTIONS
.
